Additional information

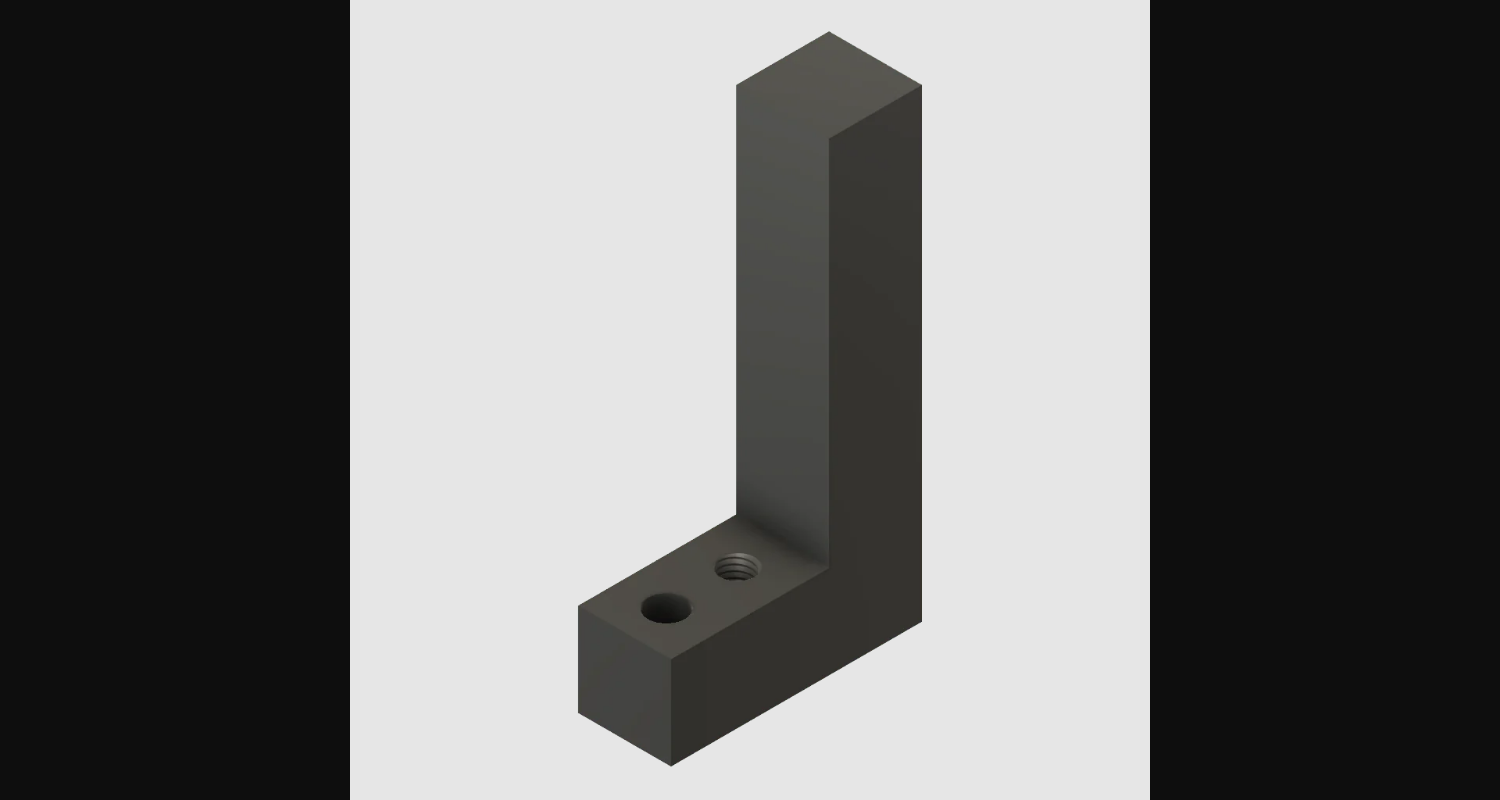

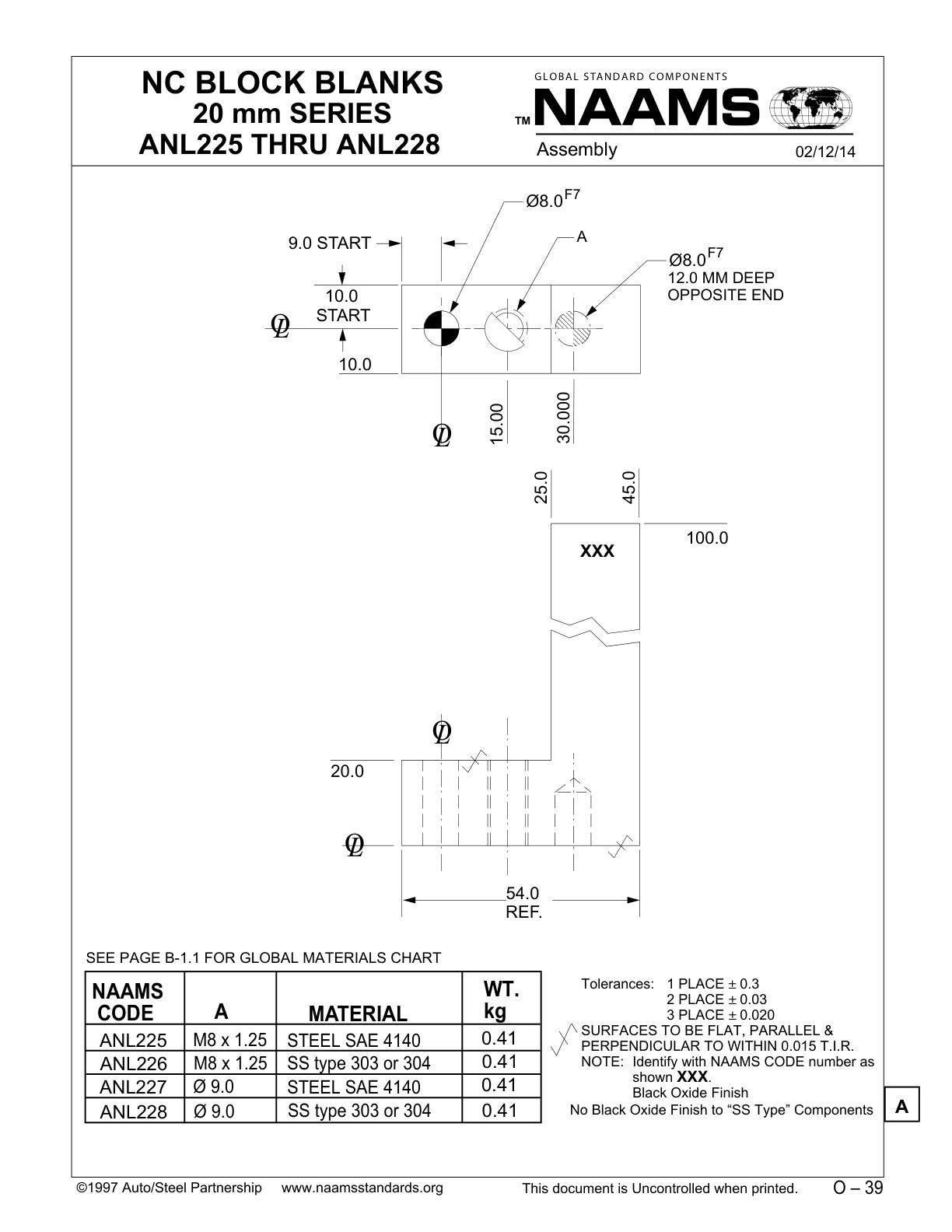

| Product Type | NC Block Blank |
|---|---|
| Series | ANL |
| Number of Mounting Holes | 3 |
| Mounting Hole Diameter | 8 mm |
| Threaded Mounting Hole Size | 9 mm |
| Block Style | L-Shaped |
| Center to End Width | 9.0 mm |
| Center to End Length | 10 mm |
| Material | Stainless Steel |
| Material Grade | 303 or 304 |
| Overall Width | 20 mm |
| Overall Height | 54.0 mm |
| Weight | 0.41 kg |
