Additional information

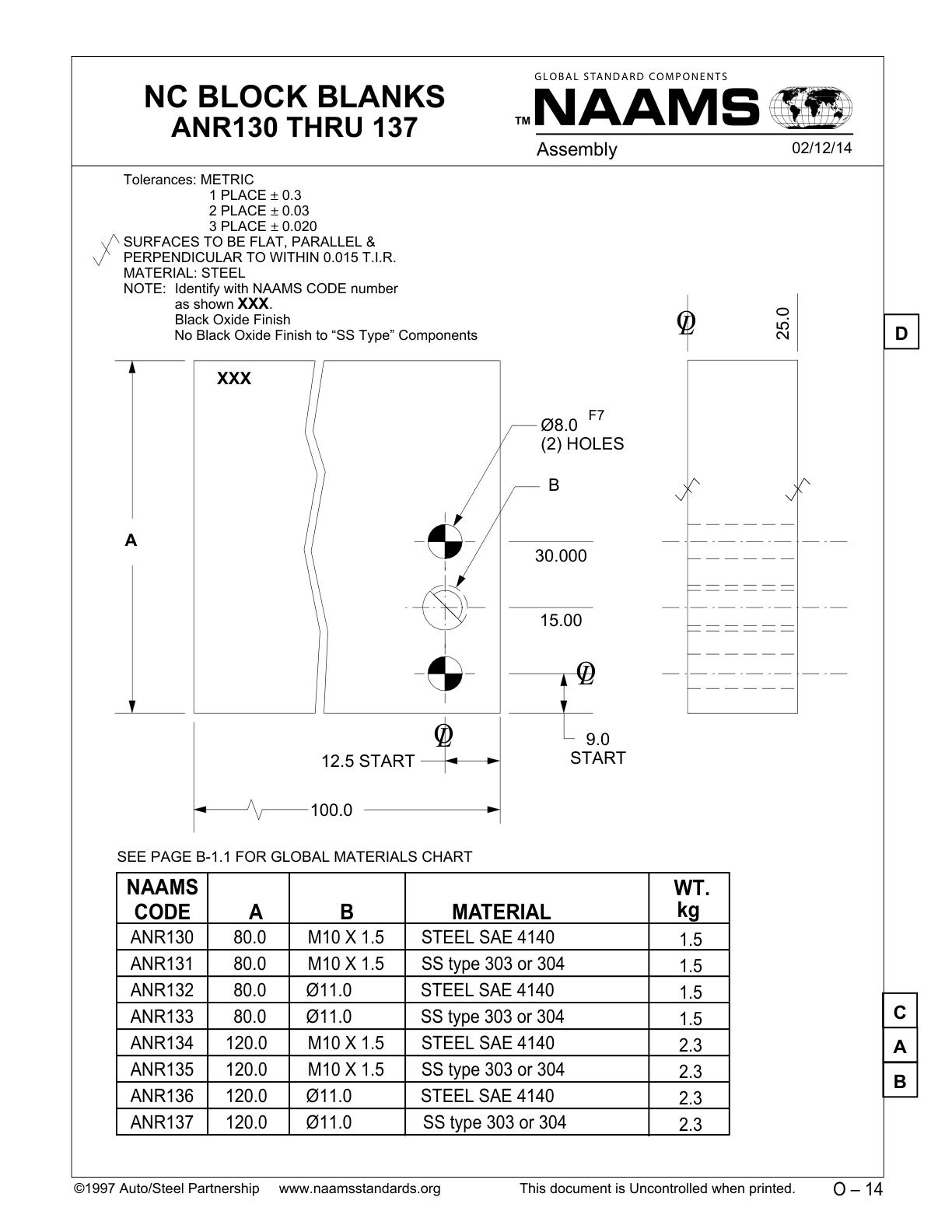

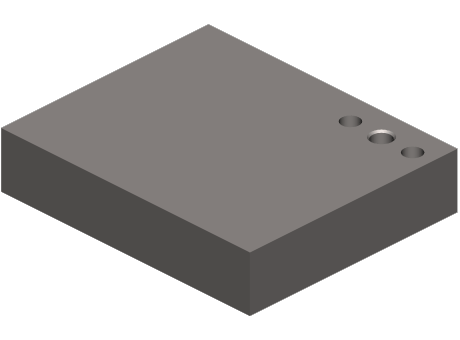

| Product Type | NC Block Blank |
|---|---|
| Series | ANR |
| Number of Mounting Holes | 3 |
| Mounting Hole Diameter | 8 mm |
| Threaded Mounting Hole Size | 11 mm |
| Center to End Width | 9.0 mm |
| Center to End Length | 12.5 mm |
| Material | Stainless Steel |
| Material Grade | 303 or 304 |
| Overall Width | 25 mm |
| Overall Height | 80.0 mm |
| Weight | 1.5 kg |
