Additional information

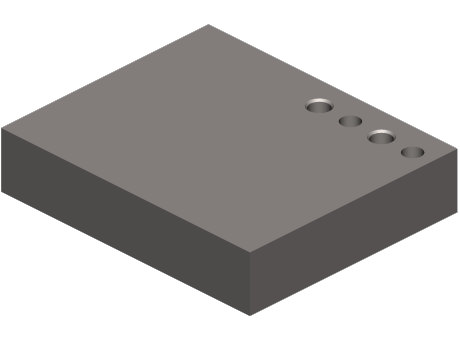

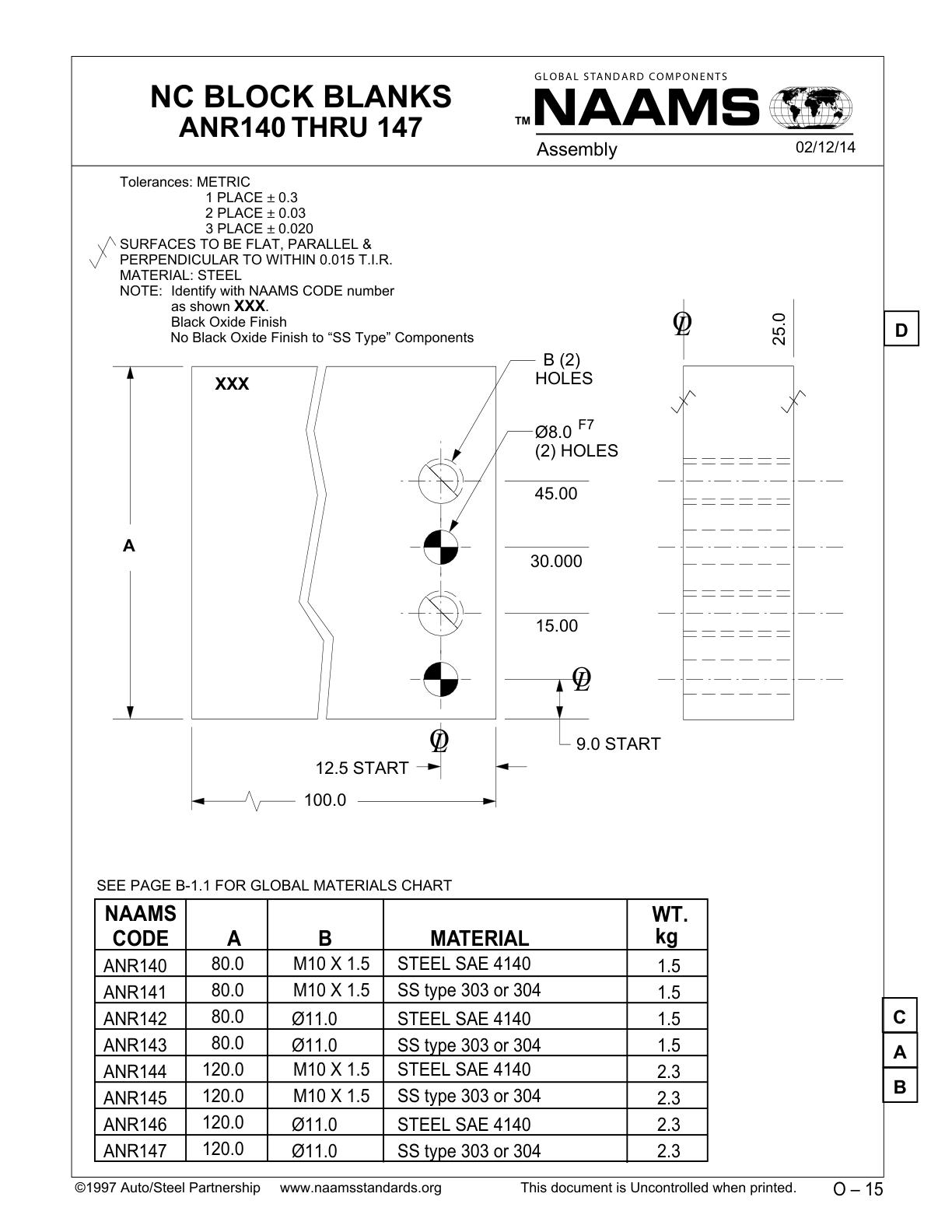

| Product Type | NC Block Blank |
|---|---|
| Series | ANR |
| Number of Mounting Holes | 4 |
| Mounting Hole Diameter | 8 mm |
| Threaded Mounting Hole Size | M10 x 1.5 |
| Center to End Width | 9.0 mm |
| Center to End Length | 12.5 mm |
| Material | Steel |
| Finish | Black Oxide |
| Material Grade | SAE 4140 |
| Overall Width | 25 mm |
| Overall Height | 120.0 mm |
| Weight | 2.3 kg |
