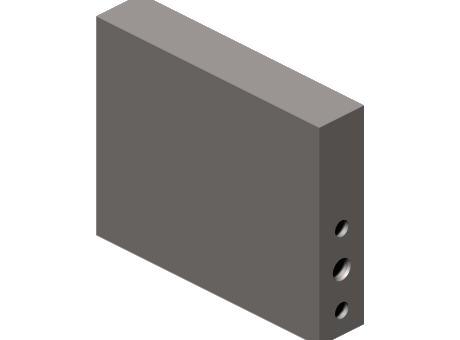

NAAMS ANR531 NC Block Blank

NAAMS ANR531 NC Block Blank


Brand: NAAMS

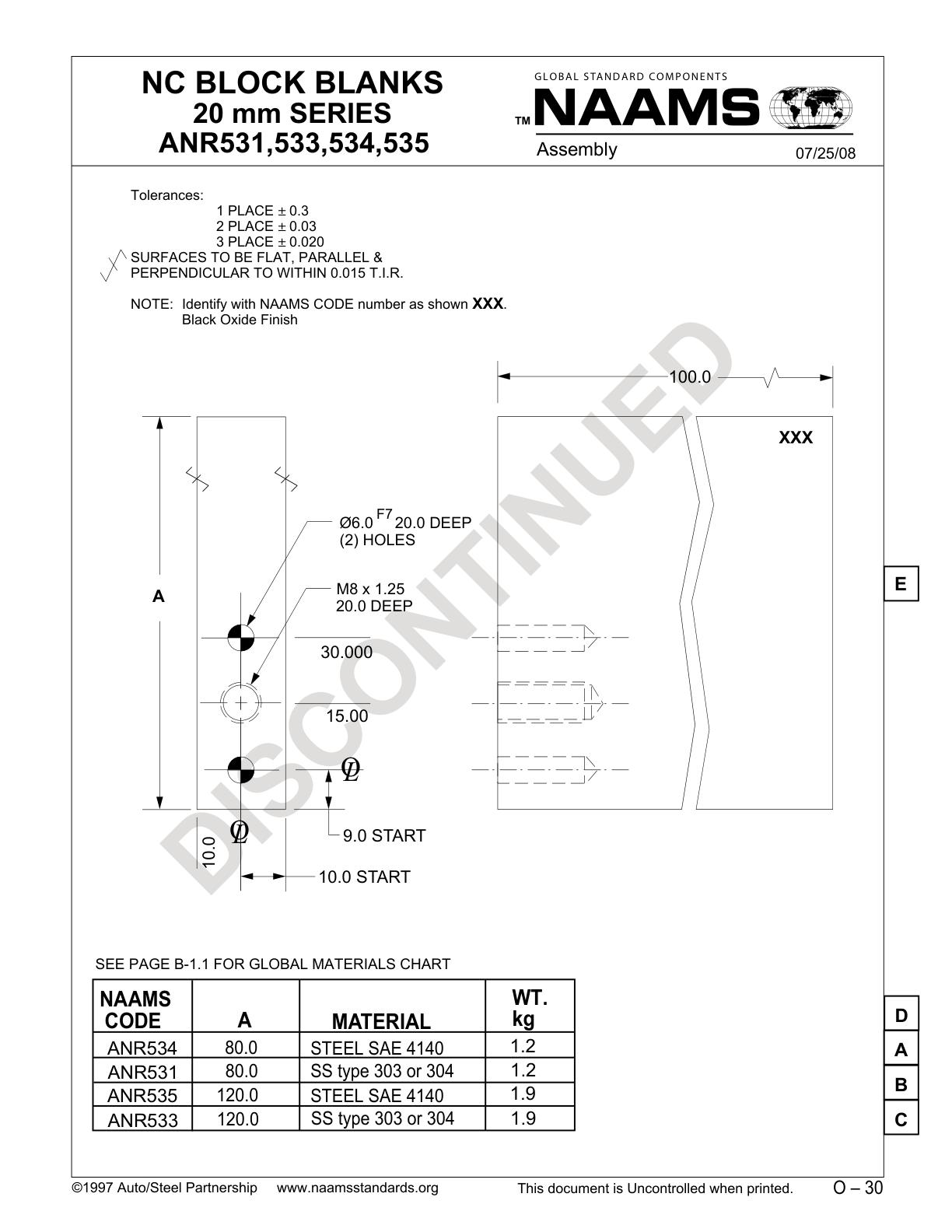

NC BLOCK BLANKS 20 mm SERIES ANR531,533,534,535

SKU: ANR531 Category:

Additional information

Product Type

NC Block Blank

Series

ANR

Number of Mounting Holes

3

Mounting Hole Diameter

6 mm

Threaded Mounting Hole Size

M8 x 1.25

Center to End Width

9.0 mm

Center to End Length

10.0 mm

Material

Stainless Steel

Finish

Black Oxide

Material Grade

303 or 304

Overall Width

25 mm

Overall Height

80.0 mm

Weight

1.2 kg
