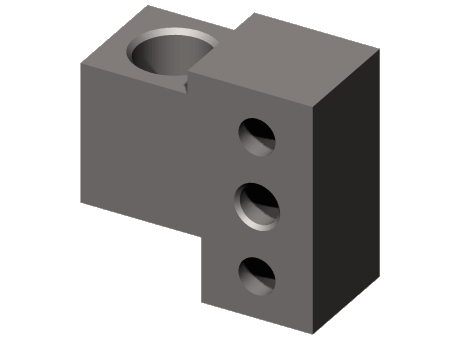

NAAMS APR013M Locating Pin Retainer

NAAMS APR013M Locating Pin Retainer


Brand: NAAMS

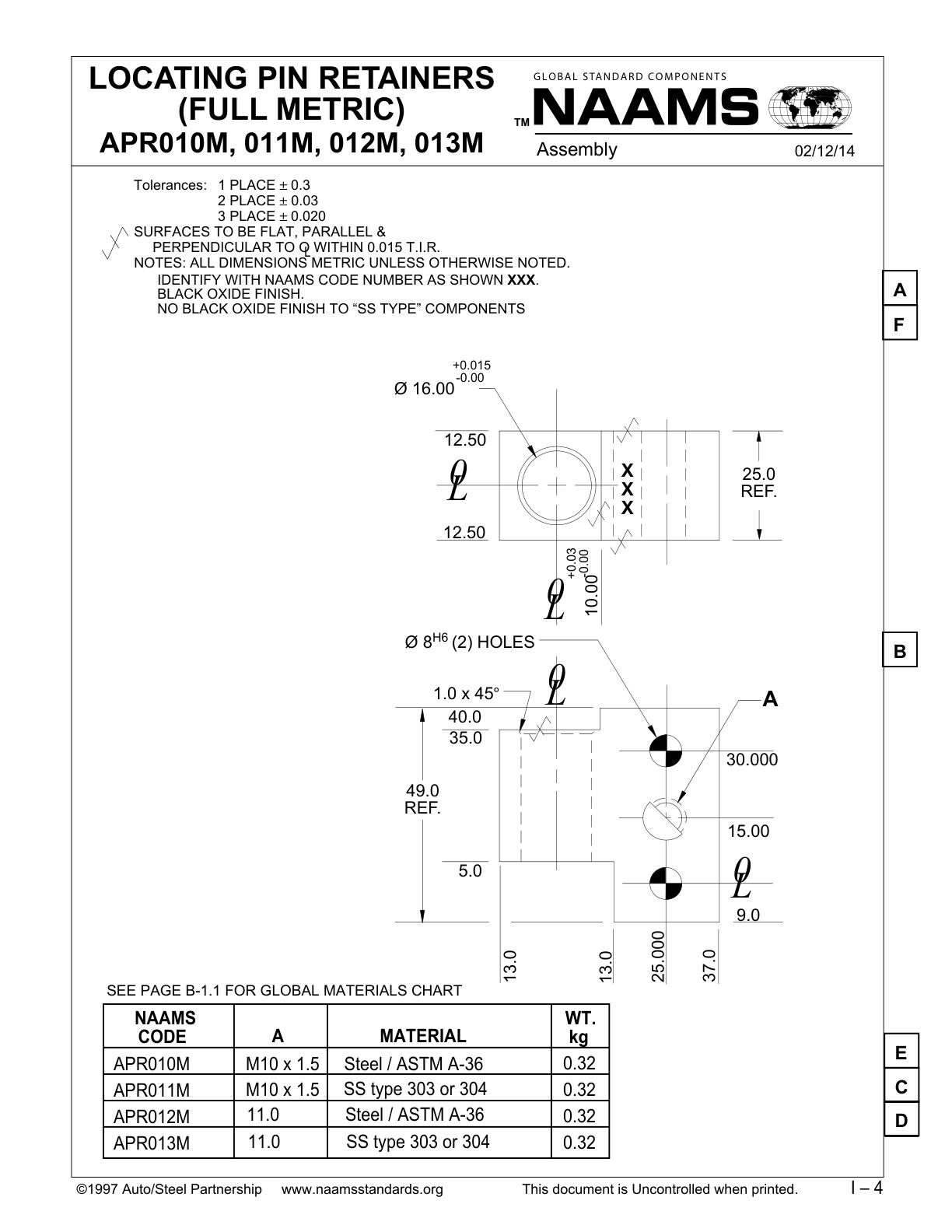

LOCATING PIN RETAINERS (FULL METRIC) APR010M, 011M, 012M, 013M

SKU: APR013M Category:

Additional information

Product Type

Locating Pin Retainer

Series

APR

Number of Mounting Holes

3

Mounting Hole Diameter

8 mm

Threaded Mounting Hole Size

11

Fixing Hole Diameter

16.00 mm

Material

Stainless Steel

Material Grade

303 or 304

Overall Width

25.0 mm

Overall Height

49.0 mm

Weight

0.32 kg
