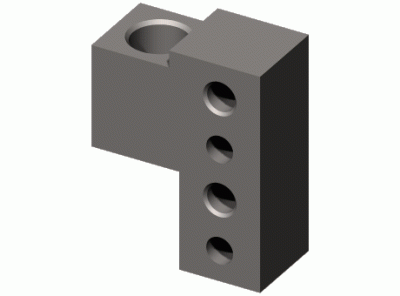

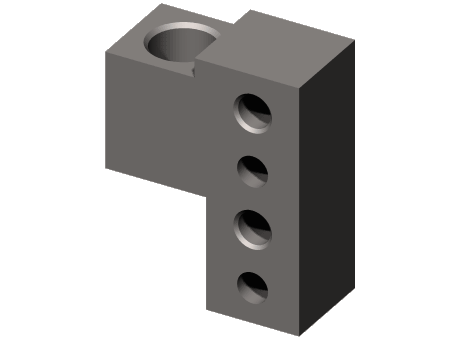

NAAMS APR031M Locating Pin Retainer

NAAMS APR031M Locating Pin Retainer


Brand: NAAMS

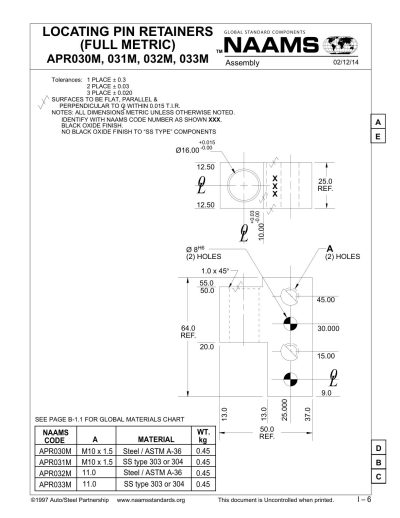

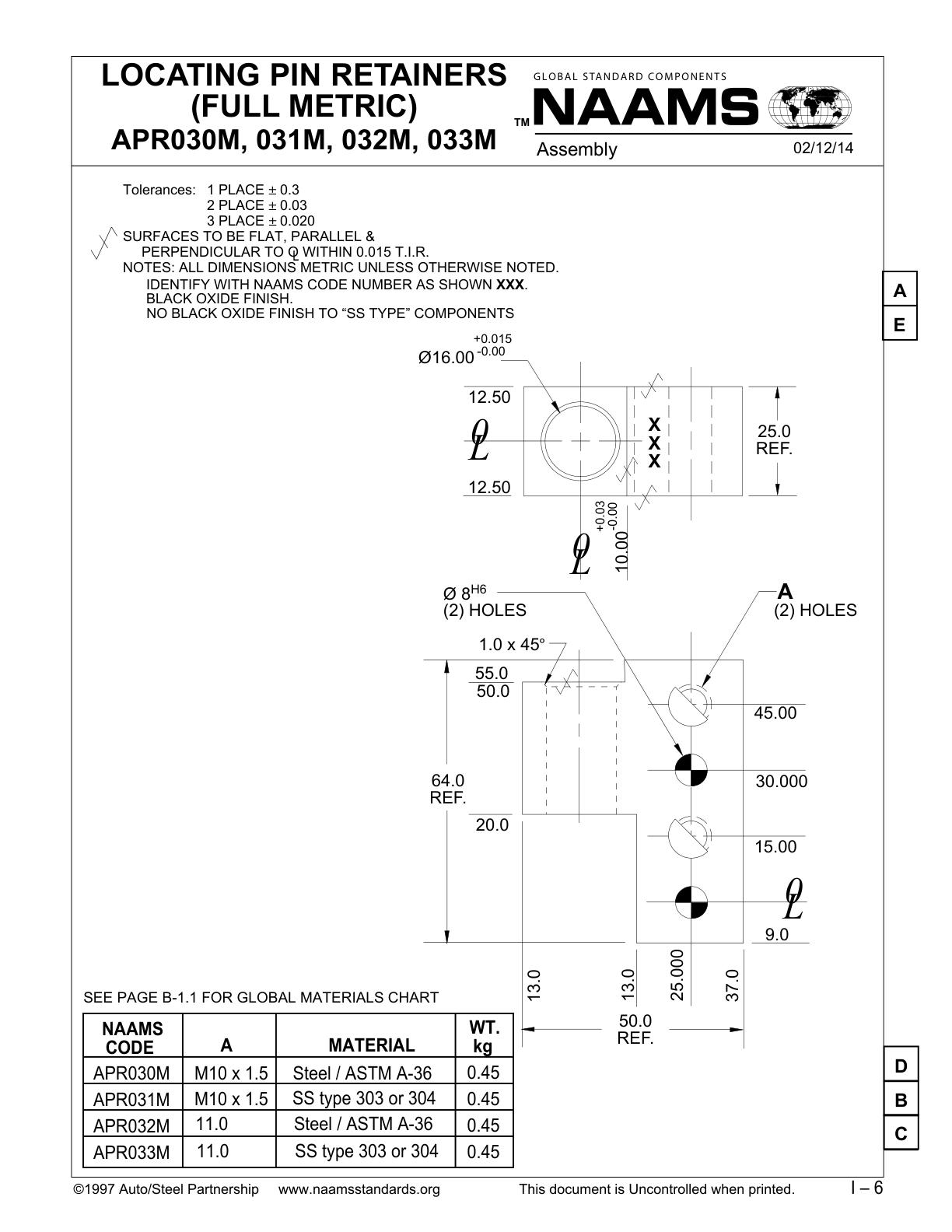

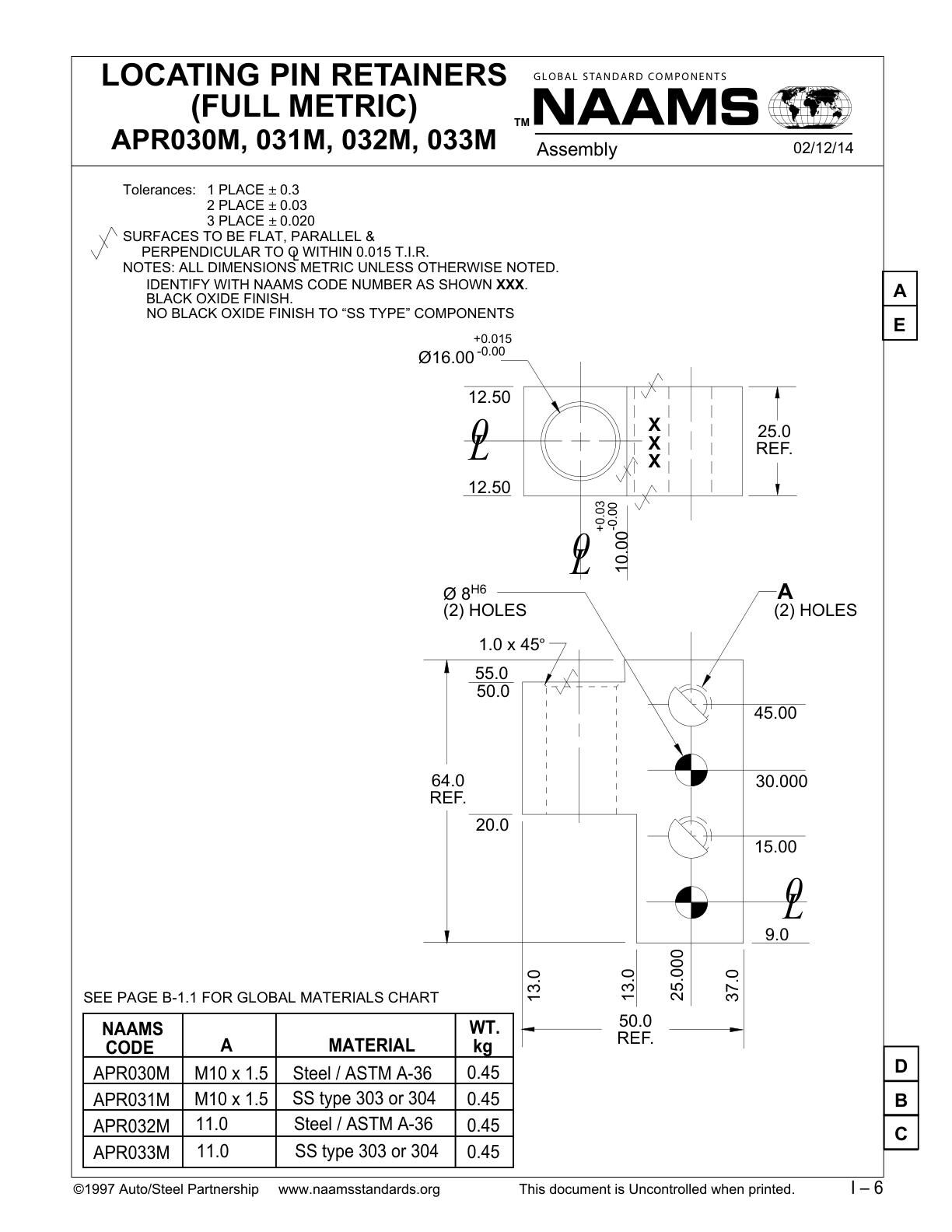

LOCATING PIN RETAINERS (FULL METRIC) APR030M, 031M, 032M, 033M

SKU: APR031M Category:

Additional information

Product Type

Locating Pin Retainer

Series

APR

Number of Mounting Holes

4

Mounting Hole Diameter

8 mm

Threaded Mounting Hole Size

M10 x 1.5

Fixing Hole Diameter

16.00 mm

Material

Stainless Steel

Material Grade

303 or 304

Overall Length

50.0 mm

Overall Width

25.0 mm

Overall Height

64.0 mm

Weight

0.45 kg
