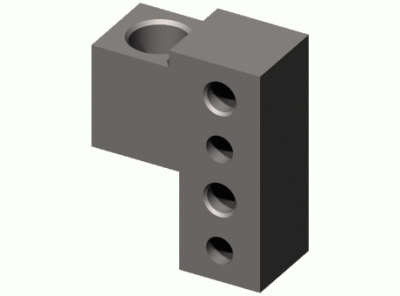

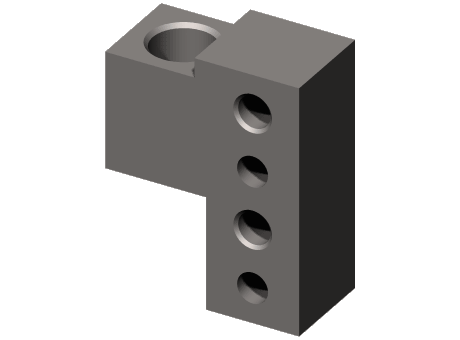

NAAMS APR033M Locating Pin Retainer

NAAMS APR033M Locating Pin Retainer


Brand: NAAMS

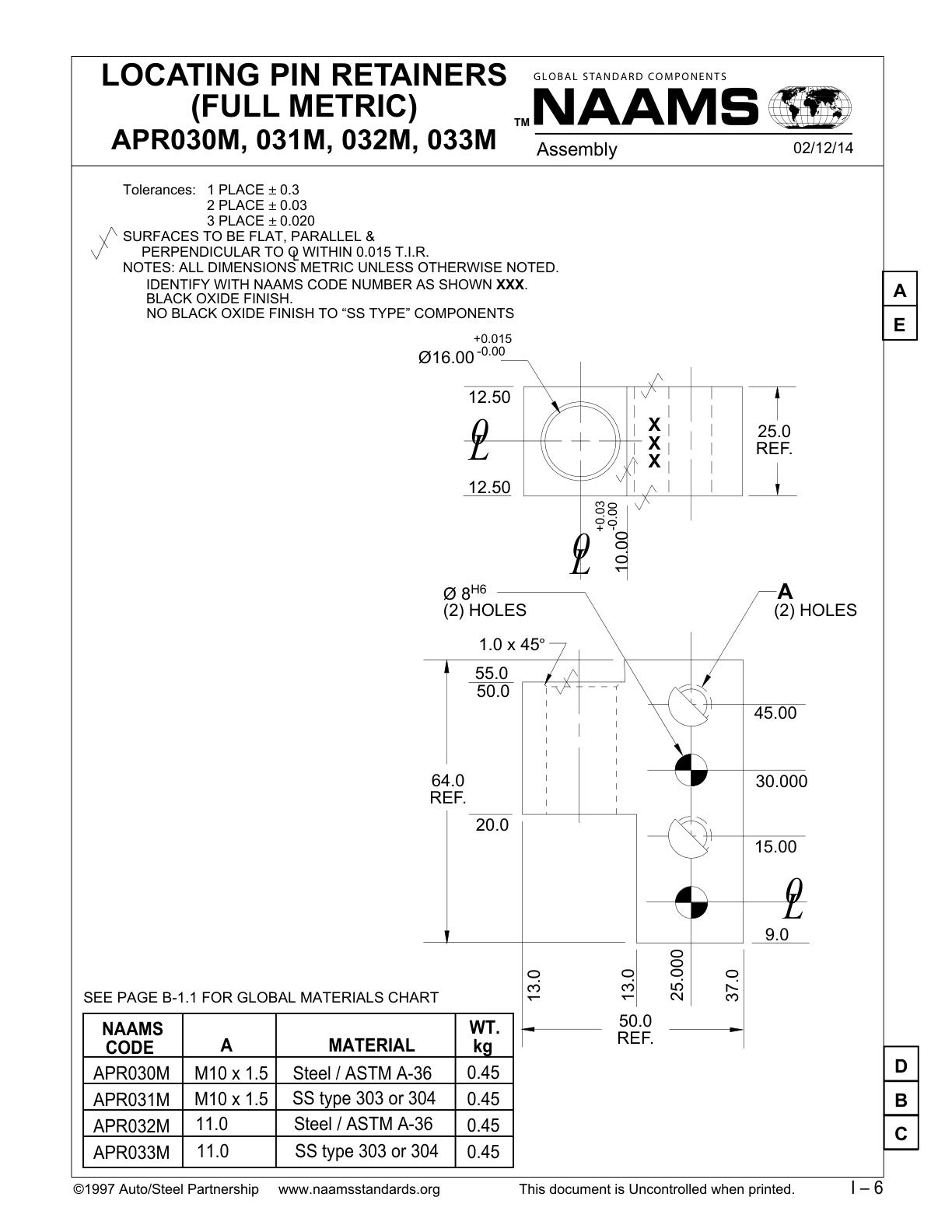

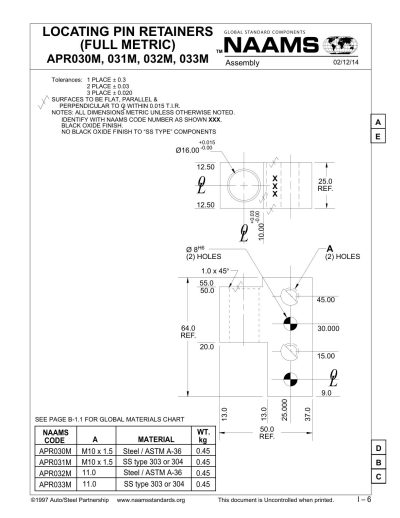

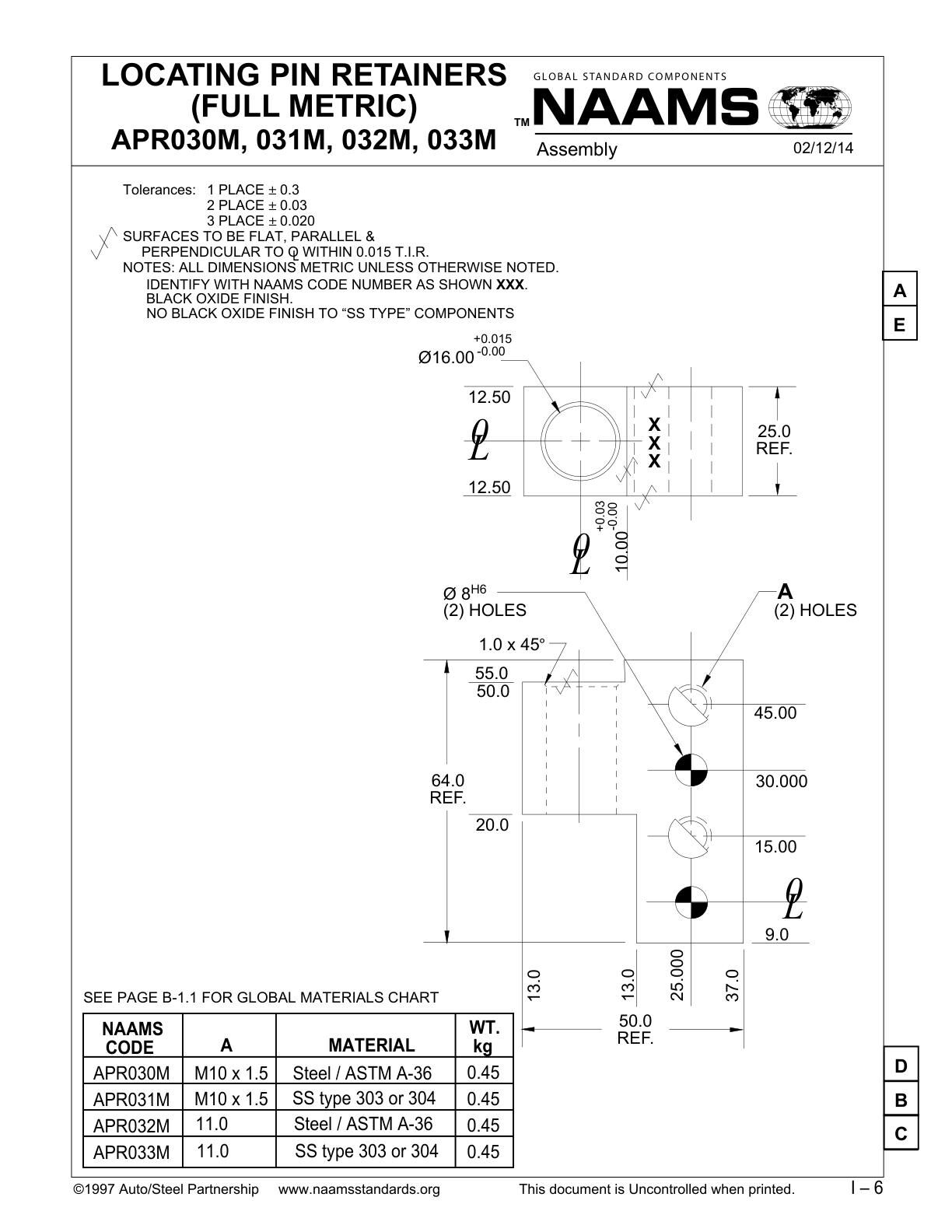

LOCATING PIN RETAINERS (FULL METRIC) APR030M, 031M, 032M, 033M

SKU: APR033M Category:

Additional information

Product Type

Locating Pin Retainer

Series

APR

Number of Mounting Holes

4

Mounting Hole Diameter

8 mm

Threaded Mounting Hole Size

11

Fixing Hole Diameter

16.00 mm

Material

Stainless Steel

Material Grade

303 or 304

Overall Length

50.0 mm

Overall Width

25.0 mm

Overall Height

64.0 mm

Weight

0.45 kg
