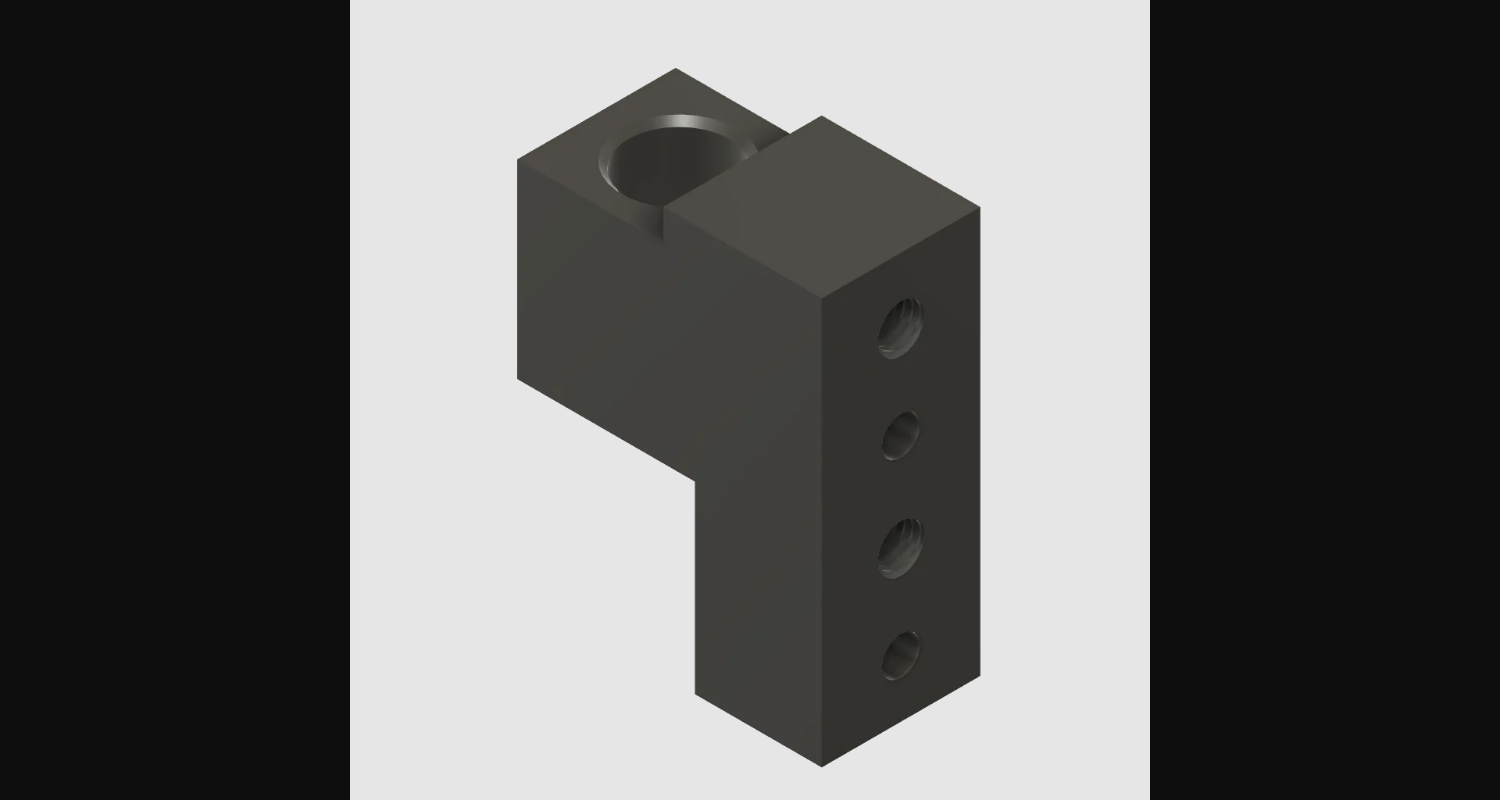

NAAMS APR045M Locating Pin Retainer

NAAMS APR045M Locating Pin Retainer


Brand: NAAMS

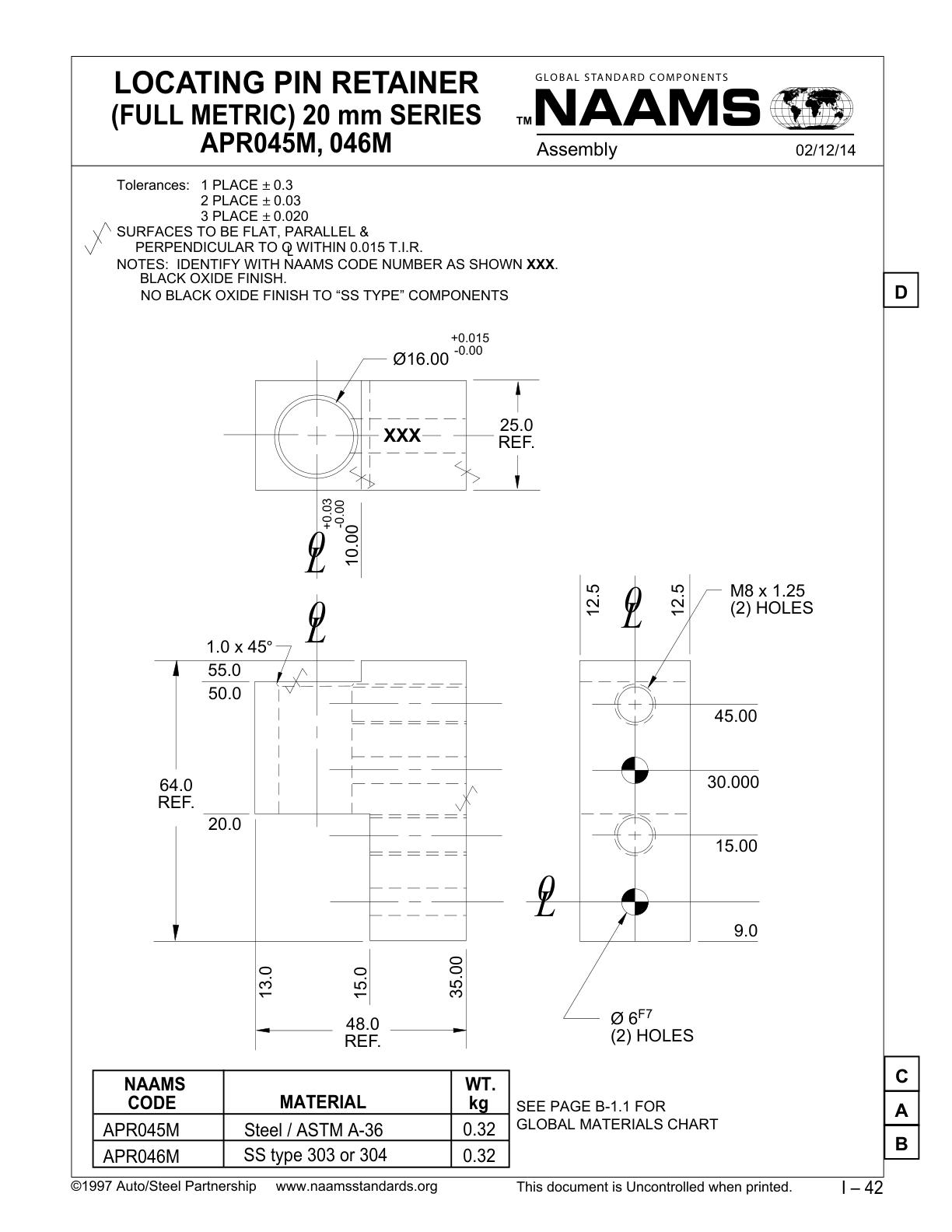

LOCATING PIN RETAINER (FULL METRIC) 20 mm SERIES APR045M, 046M

SKU: APR045M Category:

Additional information

Product Type

Locating Pin Retainer

Series

APR

Number of Mounting Holes

4

Mounting Hole Diameter

6 mm

Threaded Mounting Hole Size

M8 x 1.25

Fixing Hole Diameter

16.00 mm

Material

Steel

Finish

Black Oxide

Material Grade

ASTM A-36

Overall Length

48.0 mm

Overall Width

25.0 mm

Overall Height

64.0 mm

Weight

0.32 kg
