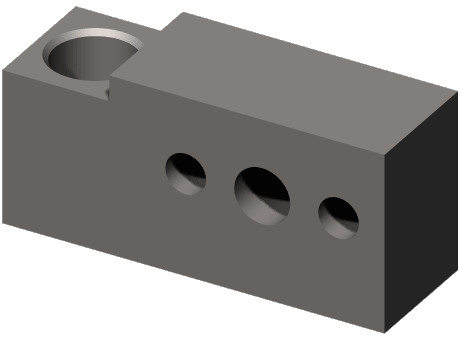

NAAMS APR050M Locating Pin Retainer

NAAMS APR050M Locating Pin Retainer


Brand: NAAMS

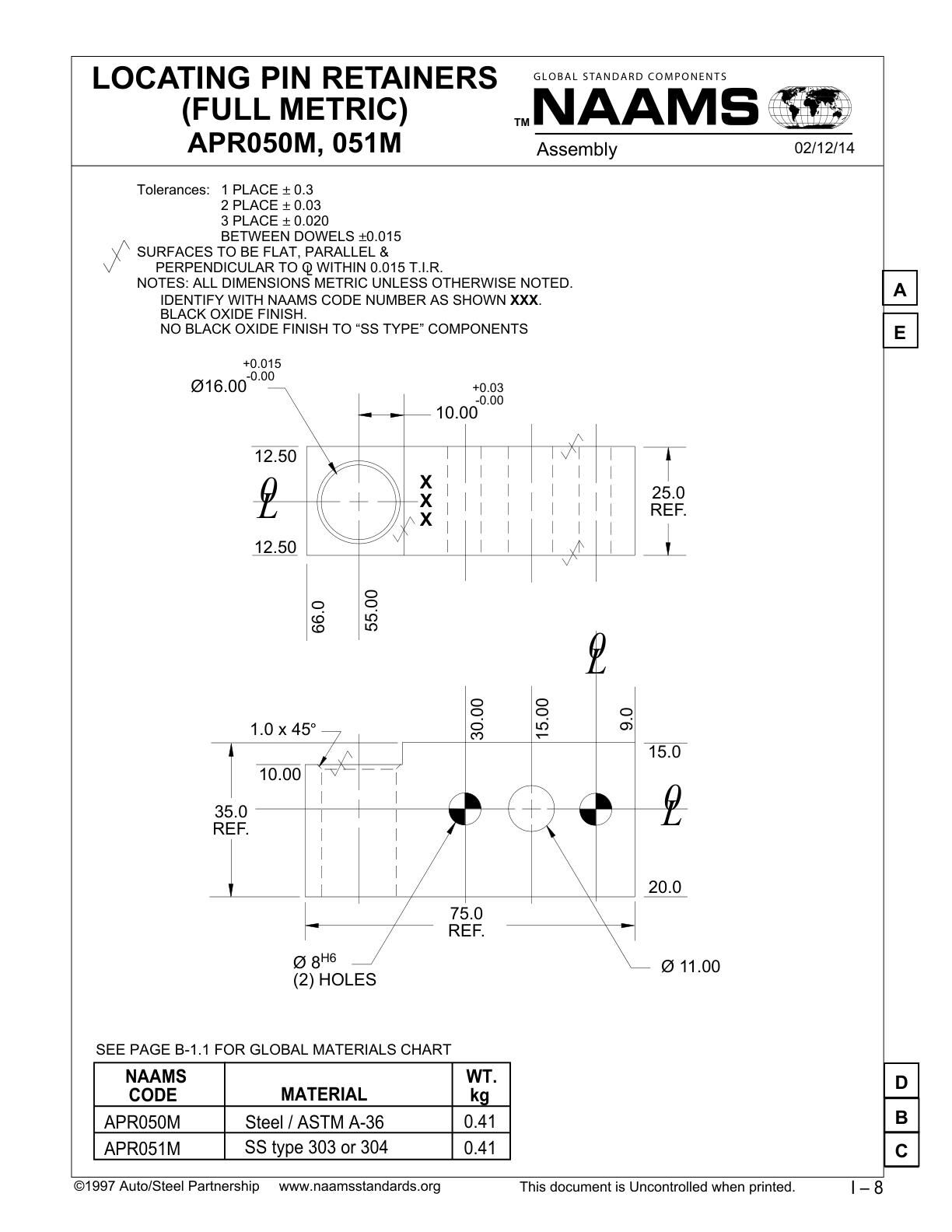

LOCATING PIN RETAINERS (FULL METRIC) APR050M, 051M

SKU: APR050M Category:

Additional information

Product Type

Locating Pin Retainer

Series

APR

Number of Mounting Holes

3

Mounting Hole Diameter

8 mm

Threaded Mounting Hole Size

11

Fixing Hole Diameter

16.00 mm

Material

Steel

Finish

Black Oxide

Material Grade

ASTM A-36

Overall Length

75.0 mm

Overall Width

25.0 mm

Overall Height

35.0 mm

Weight

0.41 kg
