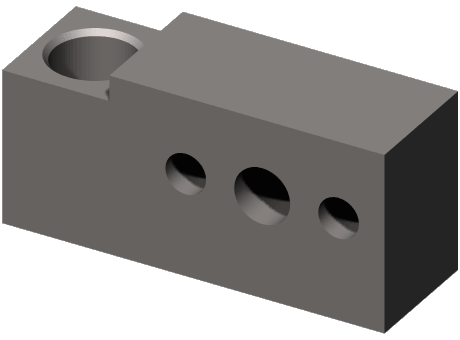

NAAMS APR055M Locating Pin Retainer

NAAMS APR055M Locating Pin Retainer


Brand: NAAMS

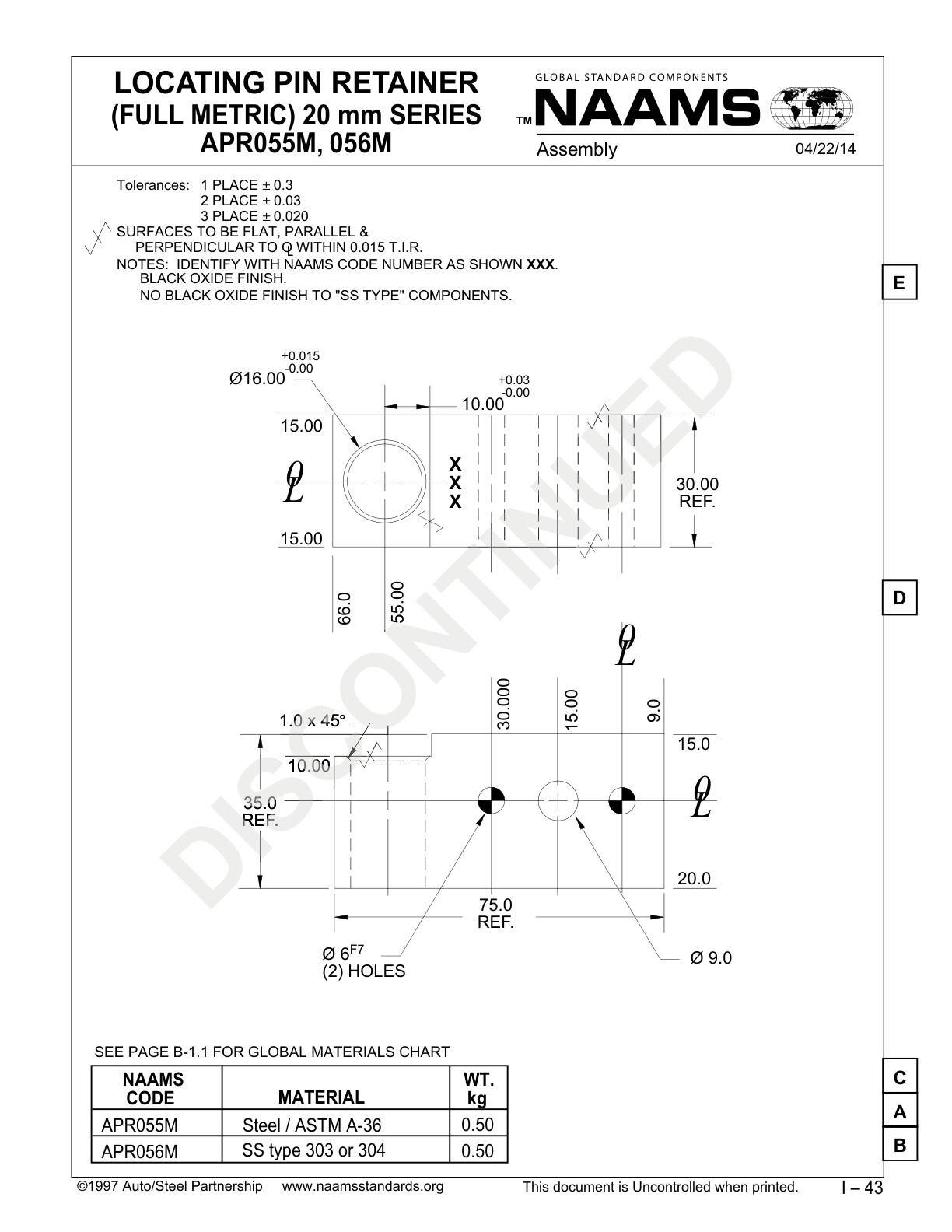

LOCATING PIN RETAINER (FULL METRIC) 20 mm SERIES APR055M, 056M

SKU: APR055M Category:

Additional information

Product Type

Locating Pin Retainer

Series

APR

Number of Mounting Holes

3

Mounting Hole Diameter

6 mm

Threaded Mounting Hole Size

9

Fixing Hole Diameter

16.00 mm

Material

Steel

Finish

Black Oxide

Material Grade

ASTM A-36

Overall Length

75.0 mm

Overall Width

30.0 mm

Overall Height

35.0 mm

Weight

0.5 kg
