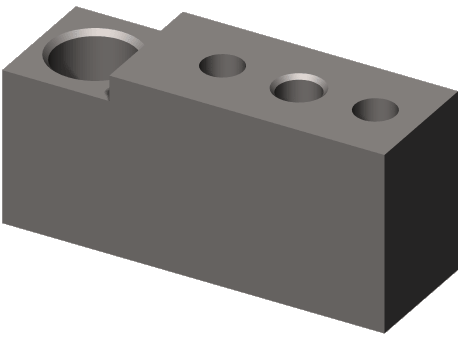

NAAMS APR061M Locating Pin Retainer

NAAMS APR061M Locating Pin Retainer


Brand: NAAMS

LOCATING PIN RETAINERS (FULL METRIC) APR060M, 061M, 062M, 063M

SKU: APR061M Category:

Additional information

Product Type

Locating Pin Retainer

Series

APR

Number of Mounting Holes

4

Mounting Hole Diameter

8 mm

Threaded Mounting Hole Size

M10 x 1.5

Fixing Hole Diameter

16.00 mm

Material

Stainless Steel

Material Grade

303 or 304

Overall Length

75.0 mm

Overall Width

25.0 mm

Overall Height

35.0 mm

Weight

0.41 kg
