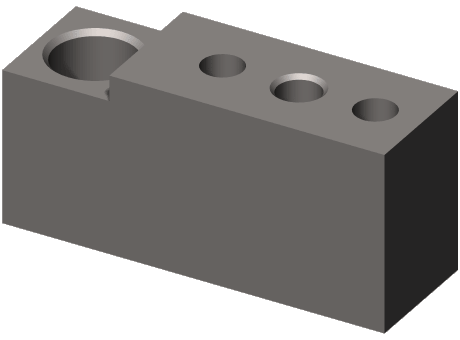

NAAMS APR062M Locating Pin Retainer

NAAMS APR062M Locating Pin Retainer


Brand: NAAMS

LOCATING PIN RETAINERS (FULL METRIC) APR060M, 061M, 062M, 063M

SKU: APR062M Category:

Additional information

Product Type

Locating Pin Retainer

Series

APR

Number of Mounting Holes

3

Mounting Hole Diameter

8 mm

Threaded Mounting Hole Size

M10

Fixing Hole Diameter

16.00 mm

Material

Steel

Finish

Black Oxide

Material Grade

ASTM A-36

Overall Length

75.0 mm

Overall Width

25.0 mm

Overall Height

35.0 mm

Weight

0.41 kg
