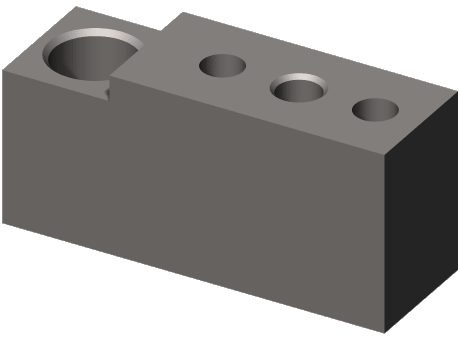

NAAMS APR063M Locating Pin Retainer

NAAMS APR063M Locating Pin Retainer


Brand: NAAMS

LOCATING PIN RETAINERS (FULL METRIC) APR060M, 061M, 062M, 063M

SKU: APR063M Category:

Additional information

Product Type

Locating Pin Retainer

Series

APR

Number of Mounting Holes

3

Mounting Hole Diameter

8 mm

Threaded Mounting Hole Size

M10

Fixing Hole Diameter

16.00 mm

Material

Stainless Steel

Material Grade

303 or 304

Overall Length

75.0 mm

Overall Width

25.0 mm

Overall Height

35.0 mm

Weight

0.41 kg
