NAAMS APR066M Locating Pin Retainer

NAAMS APR066M Locating Pin Retainer


Brand: NAAMS

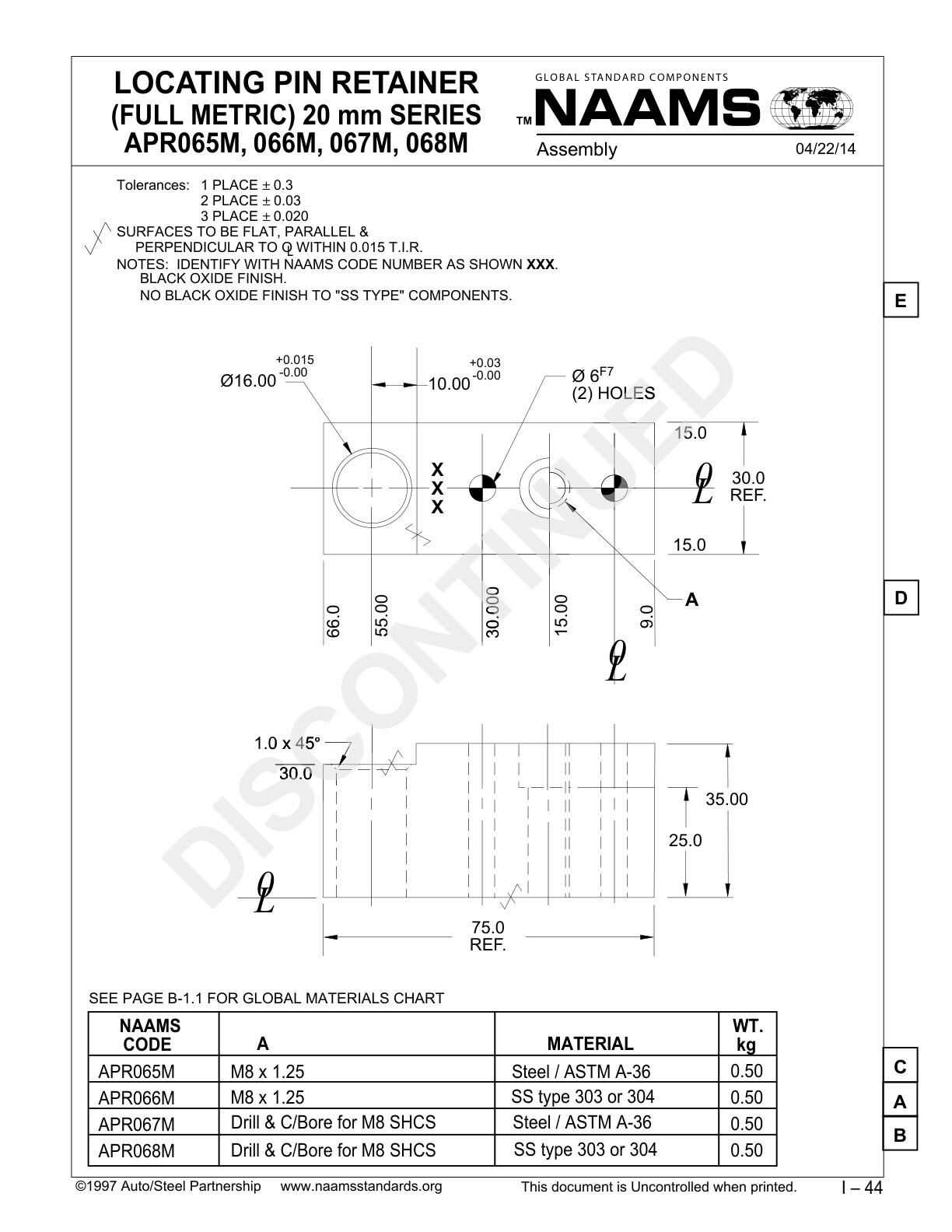

LOCATING PIN RETAINER (FULL METRIC) 20 mm SERIES APR065M, 066M, 067M, 068M

SKU: APR066M Category:

Additional information

Product Type

Locating Pin Retainer

Series

APR

Number of Mounting Holes

3

Mounting Hole Diameter

6 mm

Threaded Mounting Hole Size

M8 x 1.25

Fixing Hole Diameter

16.00 mm

Material

Stainless Steel

Material Grade

303 or 304

Overall Length

75.0 mm

Overall Width

30.0 mm

Overall Height

35.0 mm

Weight

0.5 kg
