Additional information

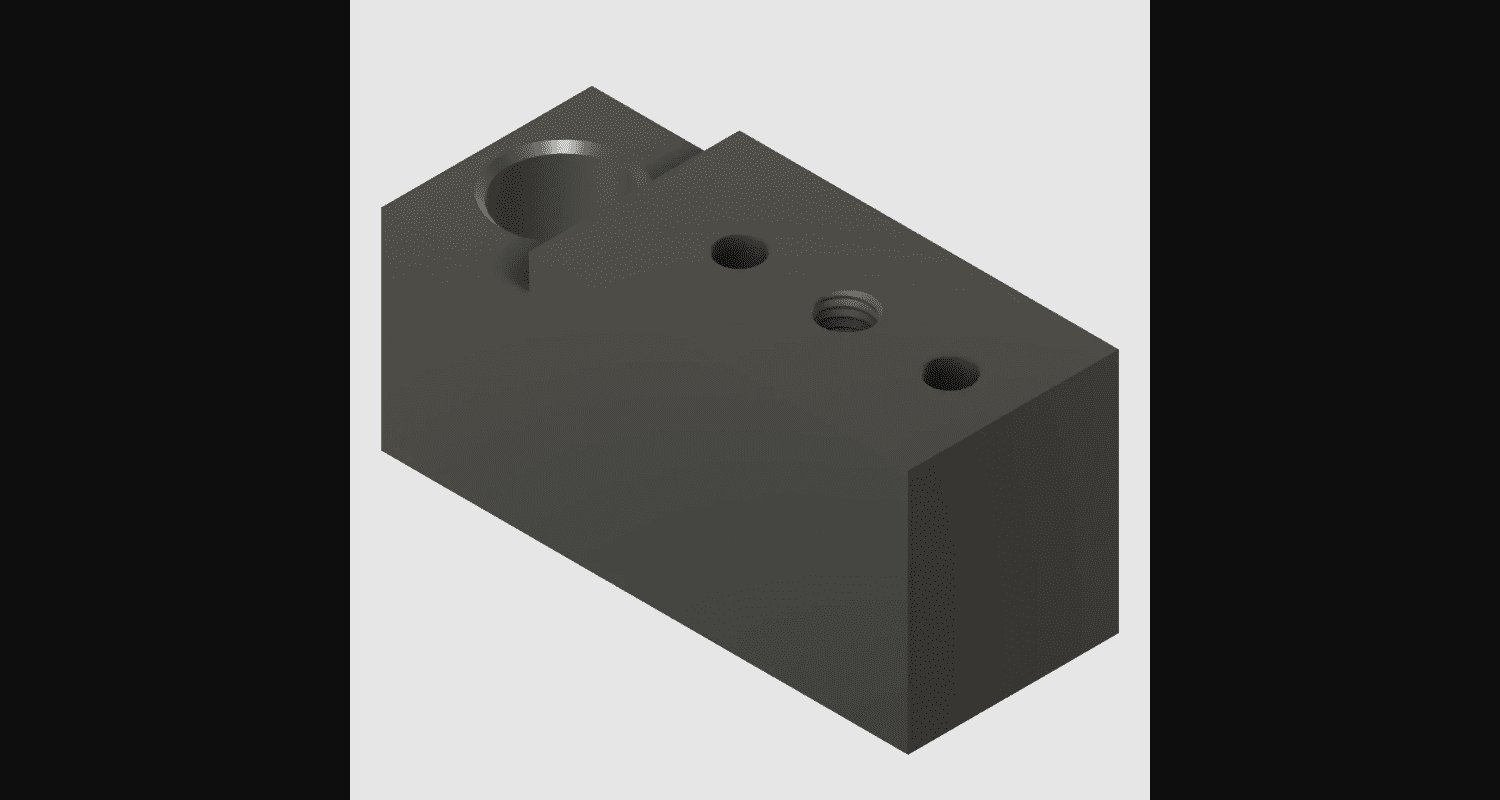

| Product Type | Locating Pin Retainer |
|---|---|
| Series | APR |
| Number of Mounting Holes | 3 |
| Mounting Hole Diameter | 6 mm |
| Threaded Mounting Hole Size | M8 |
| Fixing Hole Diameter | 16.00 mm |
| Material | Steel |
| Finish | Black Oxide |
| Material Grade | ASTM A-36 |
| Overall Length | 75.0 mm |
| Overall Width | 30.0 mm |
| Overall Height | 35.0 mm |
| Weight | 0.5 kg |
