Additional information

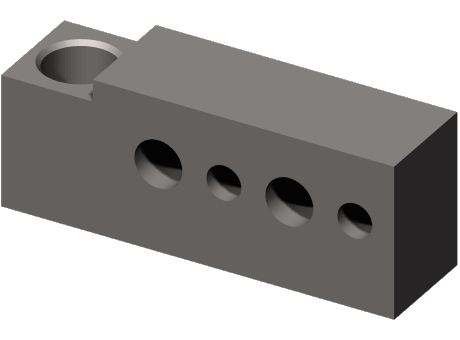

| Product Type | Locating Pin Retainer |
|---|---|
| Series | APR |
| Number of Mounting Holes | 4 |
| Mounting Hole Diameter | 8 mm |
| Threaded Mounting Hole Size | 11 |
| Fixing Hole Diameter | 16.00 mm |
| Material | Stainless Steel |
| Material Grade | 303 or 304 |
| Overall Length | 90.0 mm |
| Overall Width | 25.0 mm |
| Overall Height | 35.0 mm |
| Weight | 0.45 kg |
