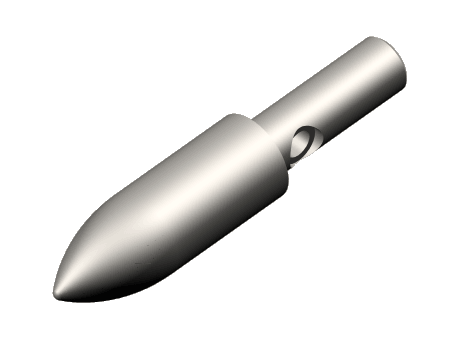

NAAMS APS192R Retractable Locating Pin

NAAMS APS192R Retractable Locating Pin


Brand: NAAMS

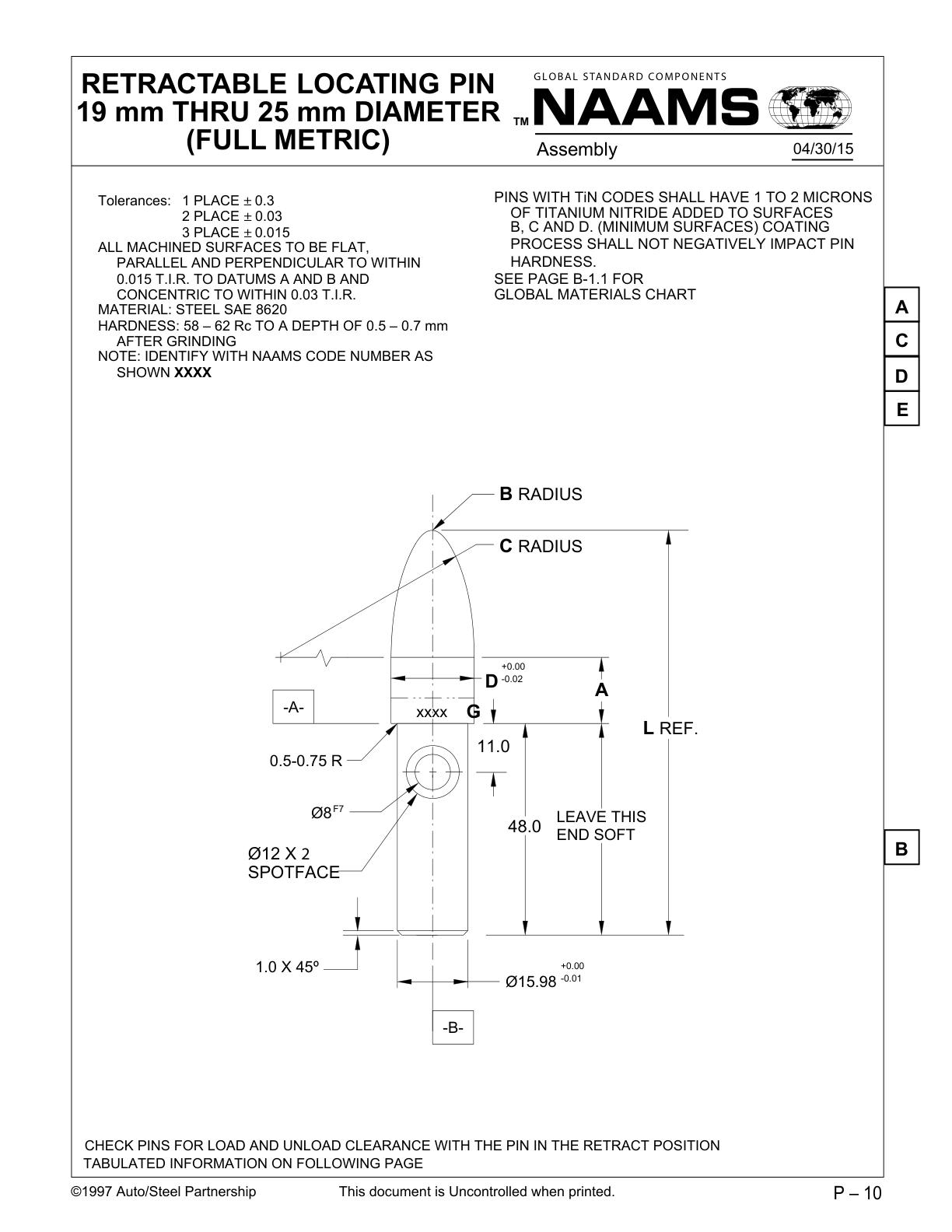

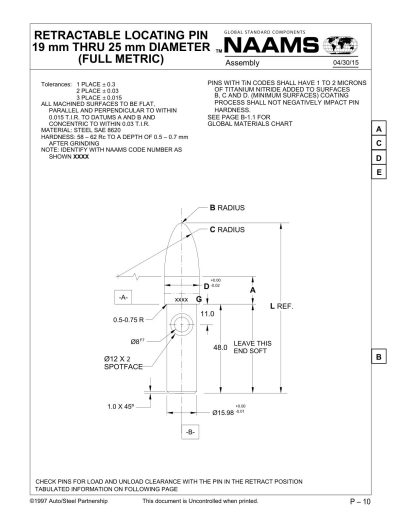

RETRACTABLE LOCATING PIN 19 mm THRU 25 mm DIAMETER (FULL METRIC)

SKU: APS192R Category:

Additional information

Product Type

Retractable Locating Pin

Series

APS

Nominal Diameter

19 mm

Pin Diameter

18.85 mm

Radius

2.0 mm (B);38.0 mm (C)

End Style

Round

Tip Shape

Bullet Nose

Shank Diameter

15.98 mm

Shank Length

48.0 mm

Material

Steel

Finish

Plain

Material Grade

SAE 8620

Hardness

58 – 62 Rc to a Depth of 0.5 – 0.7 mm after Grinding

Lead Length

20.0 mm

Overall Length

91.8 mm

Weight

0.14 kg
