Additional information

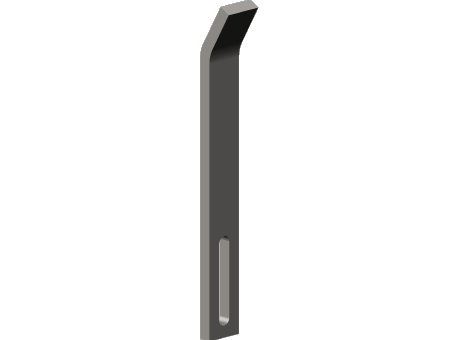

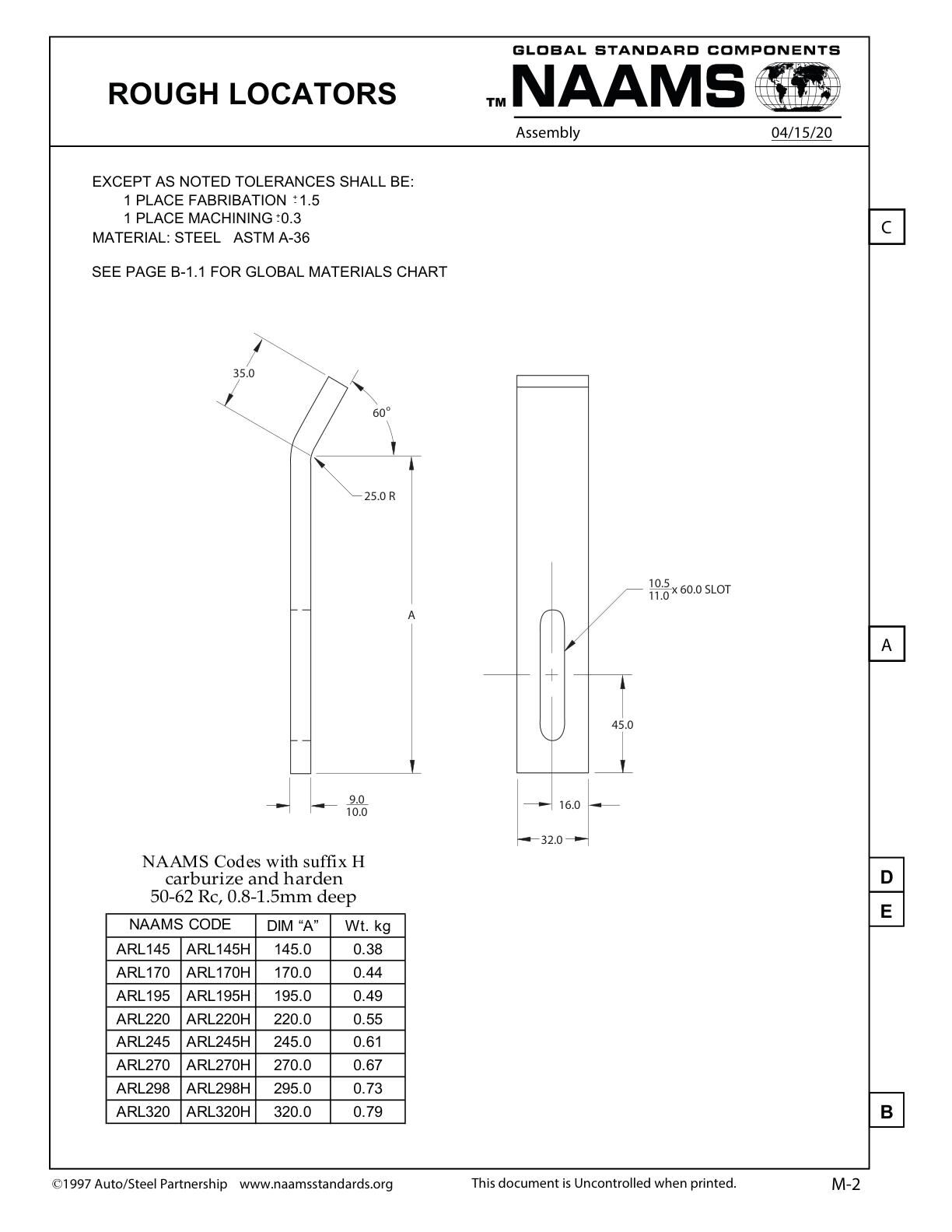

| Product Type | Rough Locator |
|---|---|
| Series | ARL |
| Bending Angle | 60° |
| Bending Width | 35 mm |
| Bending Radius | 25 mm |
| Center to End Height | 45 mm |
| Thickness | 10 mm |
| Material | Steel |
| Material Grade | ASTM A-36 |
| Machining Tolerance | +/- 0.3 |
| Fabrication Tolerance | +/- 1.5 |
| Overall Width | 32 mm |
| Overall Height | 170 mm |
| Weight | 0.44 kg |
