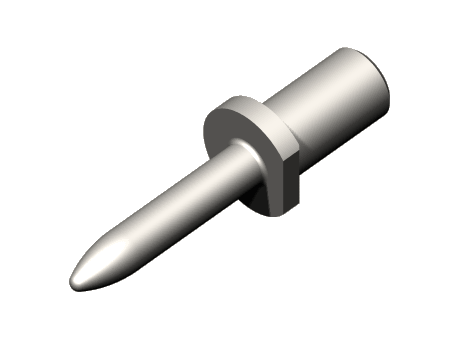

NAAMS ARP109M Respot Pin

NAAMS ARP109M Respot Pin


Brand: NAAMS

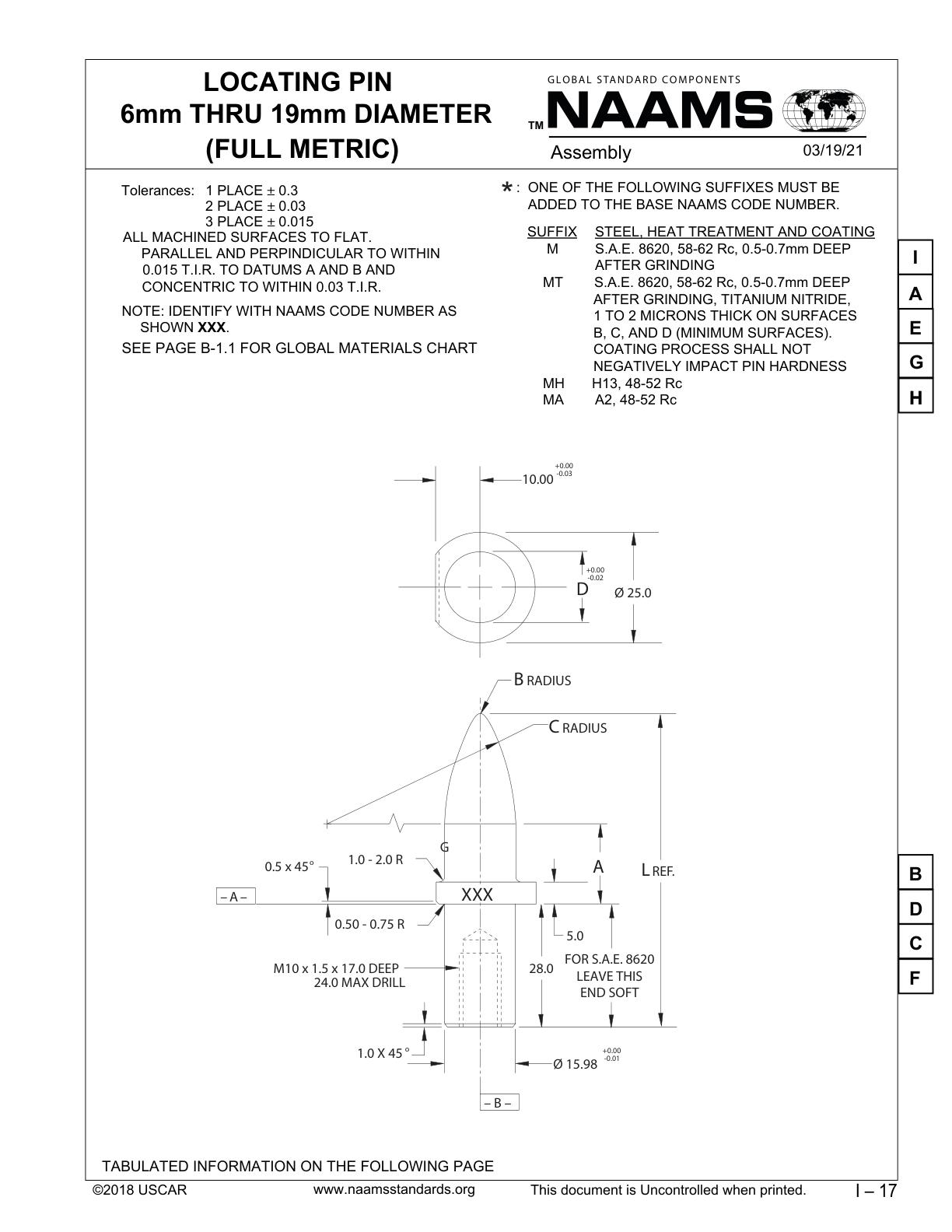

RESPOT PIN 6 mm THRU 19 mm DIAMETER

SKU: ARP109M Category:

Additional information

Product Type

Respot Pin

Series

ARP

Nominal Diameter

10 mm

Pin Diameter

9.72 mm

Radius

2.0 mm (B);30.0 mm (C)

End Style

Round

Tip Shape

Bullet Nose

Shank Diameter

15.98 mm

Shank Length

28.0 mm

Material

Steel

Finish

Plain

Material Grade

SAE 8620

Hardness

58-62 Rc, 0.5 – 0.7 mm Deep After Grinding

Lead Length

90.0 mm

Overall Length

132.4 mm

Weight

0.10 kg
