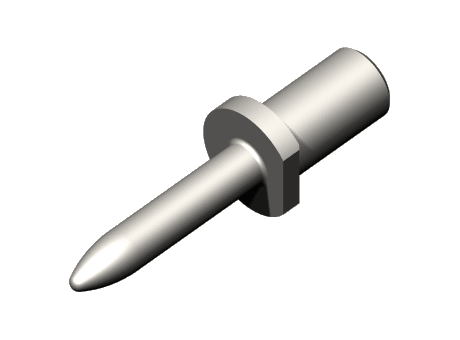

NAAMS ARP131M Respot Pin

NAAMS ARP131M Respot Pin


Brand: NAAMS

RESPOT PIN 6 mm THRU 19 mm DIAMETER

SKU: ARP131M Category:

Additional information

Product Type

Respot Pin

Series

ARP

Nominal Diameter

13 mm

Pin Diameter

12.72 mm

Radius

2.0 mm (B);39.0 mm (C)

End Style

Round

Tip Shape

Bullet Nose

Shank Diameter

15.98 mm

Shank Length

28.0 mm

Material

Steel

Finish

Plain

Material Grade

SAE 8620

Hardness

58-62 Rc, 0.5 – 0.7 mm Deep After Grinding

Lead Length

15.0 mm

Overall Length

62.4 mm

Weight

0.07 kg
