Additional information

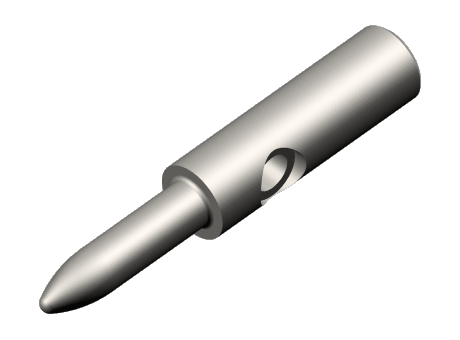

| Product Type | Retractable Locating Pin |
|---|---|
| Series | ARP |
| Nominal Diameter | 13 mm |
| Pin Diameter | 12.72 mm |
| Radius | 2.0 mm (B);39.0 mm (C) |
| End Style | Round |
| Tip Shape | Bullet Nose |
| Shank Diameter | 15.98 mm |
| Shank Length | 53.0 mm |
| Material | Steel |
| Finish | Plain |
| Material Grade | SAE 8620 |
| Hardness | 58 – 62 Rc to a Depth of 0.5 – 0.7 mm after Grinding |
| Lead Length | 10.0 mm |
| Overall Length | 82.4 mm |
| Weight | 0.10 kg |
