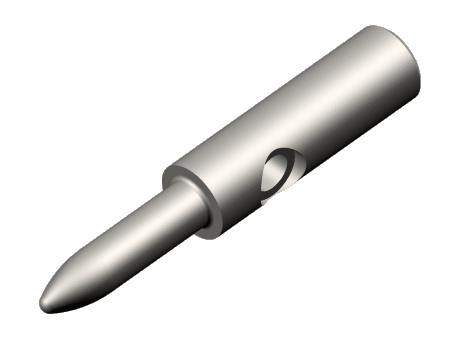

NAAMS ARP136R Retractable Locating Pin

NAAMS ARP136R Retractable Locating Pin


Brand: NAAMS

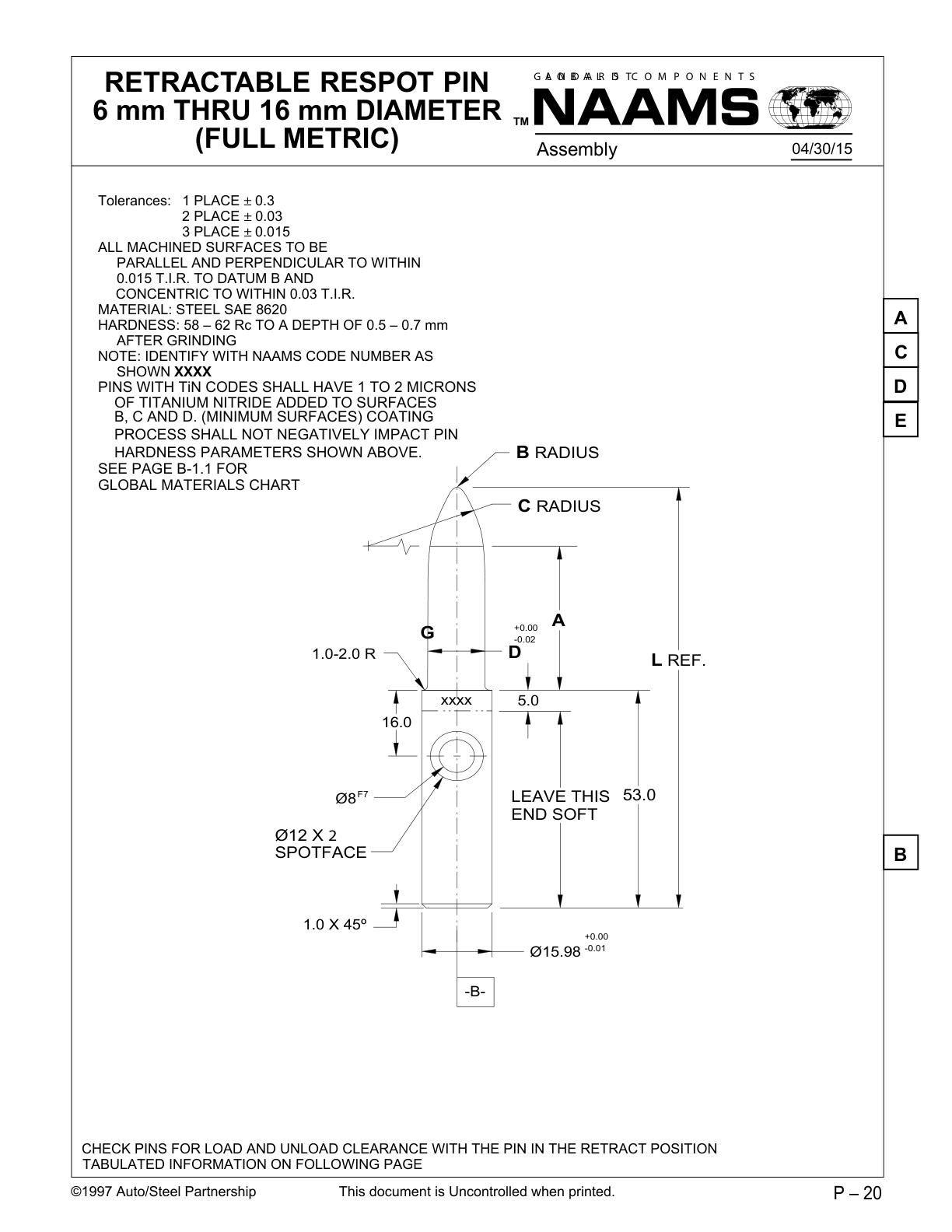

RETRACTABLE LOCATING PIN 6 mm THRU 16 mm DIAMETER (FULL METRIC)

SKU: ARP136R Category:

Additional information

Product Type

Retractable Locating Pin

Series

ARP

Nominal Diameter

13 mm

Pin Diameter

12.72 mm

Radius

2.0 mm (B);39.0 mm (C)

End Style

Round

Tip Shape

Bullet Nose

Shank Diameter

15.98 mm

Shank Length

53.0 mm

Material

Steel

Finish

Plain

Material Grade

SAE 8620

Hardness

58 – 62 Rc to a Depth of 0.5 – 0.7 mm after Grinding

Lead Length

55.0 mm

Overall Length

127.4 mm

Weight

0.14 kg
