Additional information

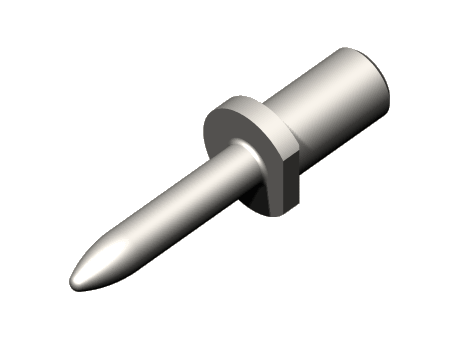

| Product Type | Respot Pin |
|---|---|
| Series | ARP |
| Nominal Diameter | 16 mm |
| Pin Diameter | 15.72 mm |
| Radius | 2.0 mm (B);48.0 mm (C) |
| End Style | Round |
| Tip Shape | Bullet Nose |
| Shank Diameter | 15.98 mm |
| Shank Length | 28.0 mm |
| Material | Steel |
| Finish | Plain |
| Material Grade | SAE 8620 |
| Hardness | 58-62 Rc, 0.5 – 0.7 mm Deep After Grinding |
| Lead Length | 15.0 mm |
| Overall Length | 67.5 mm |
| Weight | 0.08 kg |
