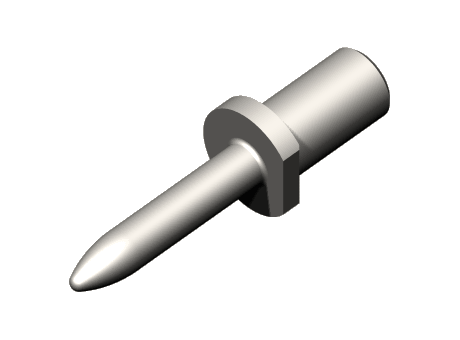

NAAMS ARP255M Respot Pin

NAAMS ARP255M Respot Pin


Brand: NAAMS

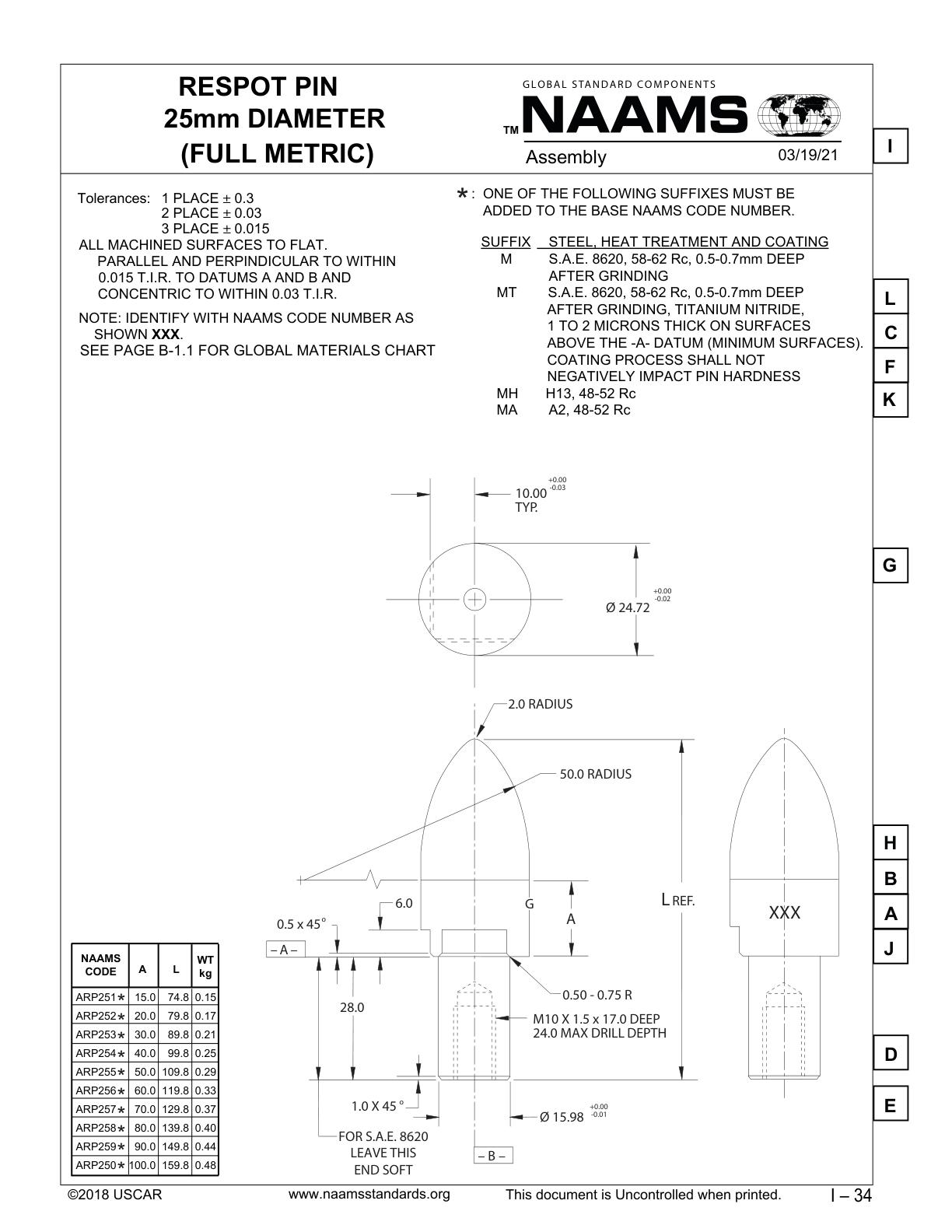

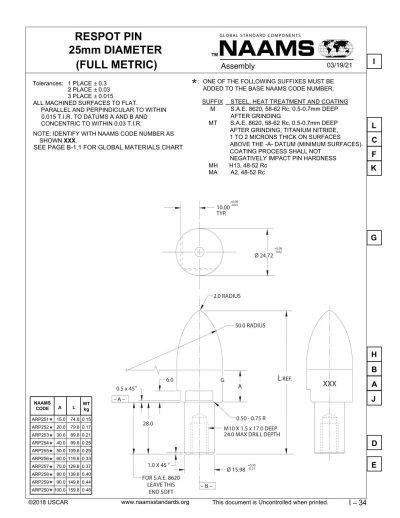

RESPOT PIN 25mm DIAMETER (FULL METRIC)

SKU: ARP255M Category:

Additional information

Product Type

Respot Pin

Series

ARP

Nominal Diameter

25 mm

Pin Diameter

24.72 mm

Radius

2.0 mm (B);50.0 mm (C)

End Style

Round

Tip Shape

Bullet Nose

Shank Diameter

15.98 mm

Shank Length

28.0 mm

Material

Steel

Finish

Plain

Material Grade

SAE 8620

Hardness

58-62 Rc, 0.5 – 0.7 mm Deep After Grinding

Lead Length

50.0 mm

Overall Length

109.8 mm

Weight

0.29 kg
