Additional information

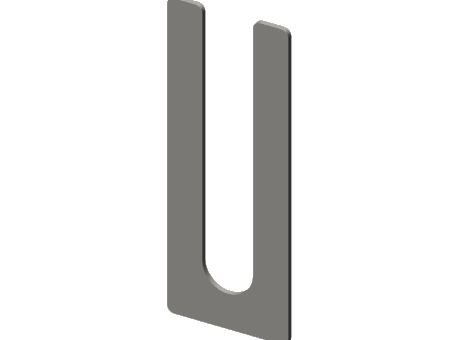

| Product Type | Fitting Shim |
|---|---|
| Series | ASH1 |
| Number of Slots | 1 |
| Slot Width | 10.5 mm |
| Slot Center to Edge Length | 10 mm |
| Radius | 1.5 mm |
| Material | Steel |
| Material Grade | S.A.E. 1010 CRS FULL HARD |
| Thickness | 0.25 mm |
| Center to End Width | 12.5 mm |
| Overall Length | 65 mm |
| Overall Width | 25 mm |
| Package Quantity | 2 |
