Additional information

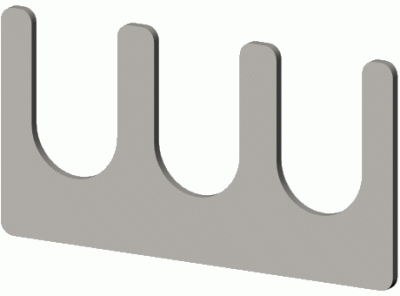

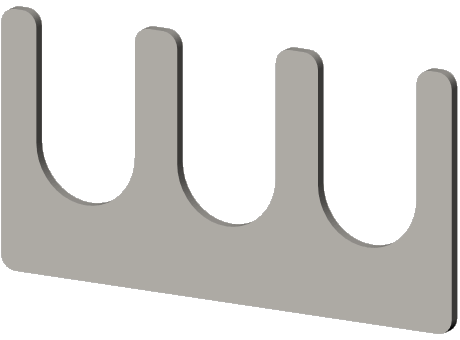

| Product Type | Fitting Shim |
|---|---|
| Series | ASH3 |
| Number of Slots | 3 |
| Slot End Type | Round |
| 2 Slot Center to Center Length | 15 mm |
| 3 Slot Center to Center Length | 30 mm |
| Slot Center to Edge Length | 9 mm |
| Radius | 1.5 mm |
| Material | Steel |
| Finish | Black Oxide |
| Material Grade | S.A.E. 1010 FULL HARD |
| Thickness | 1.00 mm |
| Center to End Width | 12.5 mm |
| Overall Length | 48 mm |
| Overall Width | 25 mm |
| Package Quantity | 1 |
