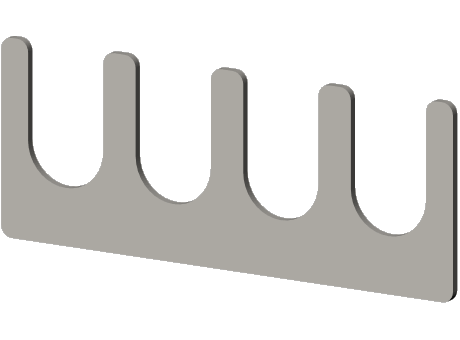

NAAMS ASH402 Fitting Shim

NAAMS ASH402 Fitting Shim


Brand: NAAMS

METRIC FITTING SHIMS 4 – SLOT

SKU: ASH402 Category:

Additional information

Product Type

Fitting Shim

Series

ASH4

Number of Slots

4

Slot End Type

Round

2 Slot Center to Center Length

15 mm

3 Slot Center to Center Length

30 mm

4 Slot Center to Center Length

45 mm

Slot Center to Edge Length

9 mm

Radius

1.5 mm

Material

Steel

Material Grade

S.A.E. 1010 FULL HARD

Thickness

0.25 mm

Center to End Width

12.5 mm

Overall Length

48 mm

Overall Width

25 mm

Package Quantity

2
