NAAMS ASH405N Fitting Shim

NAAMS ASH405N Fitting Shim


Brand: NAAMS

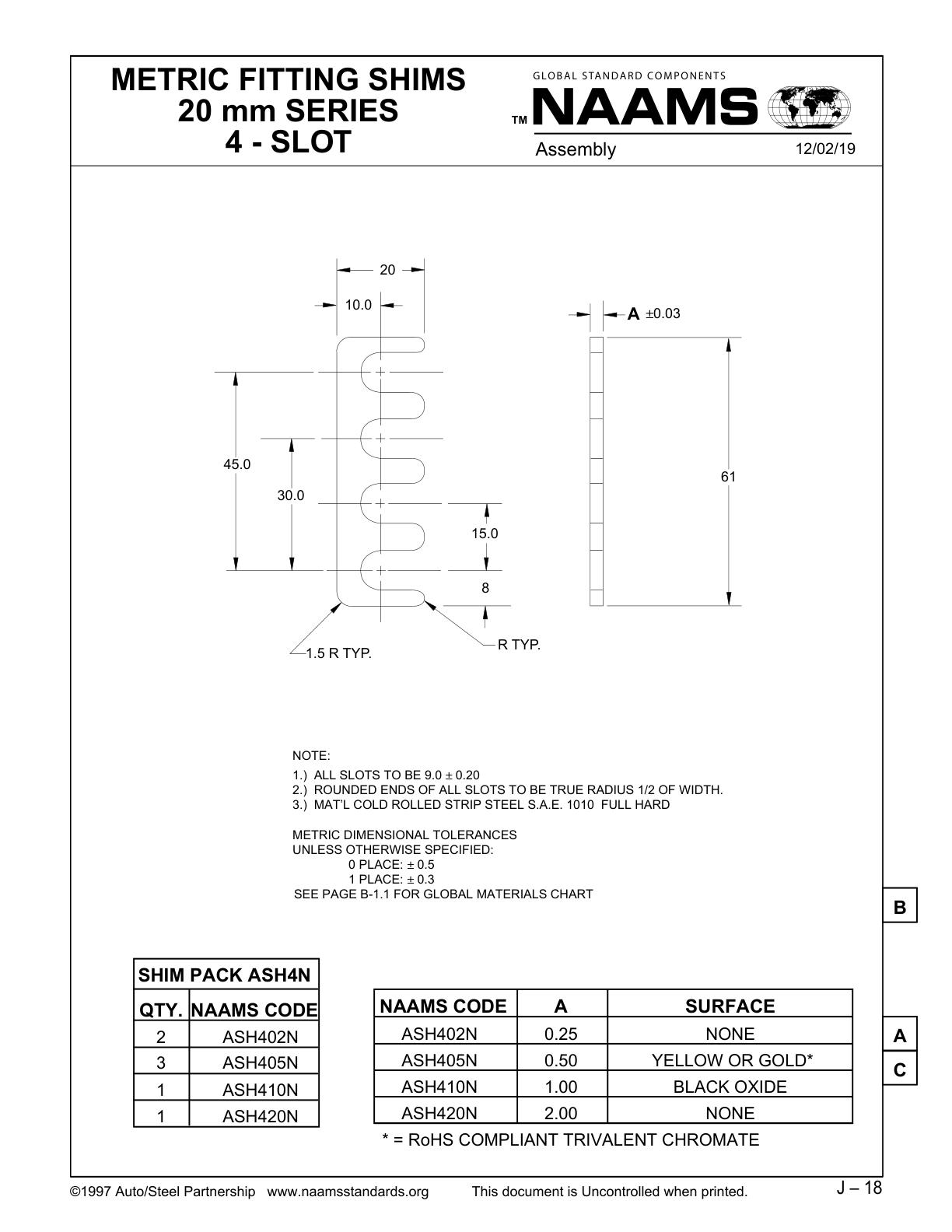

METRIC FITTING SHIMS 20 mm SERIES 4 – SLOT

SKU: ASH405N Category:

Additional information

Product Type

Fitting Shim

Series

ASH4N

Number of Slots

4

Slot End Type

Round

2 Slot Center to Center Length

15 mm

3 Slot Center to Center Length

30 mm

4 Slot Center to Center Length

45 mm

Slot Center to Edge Length

8 mm

Radius

1.5 mm

Material

Steel

Finish

Yellow or Gold

Material Grade

S.A.E. 1010 FULL HARD

Thickness

0.50 mm

Center to End Width

10 mm

Overall Length

61 mm

Overall Width

20 mm

Standard Mets

RoHS Compliant

Package Quantity

3
