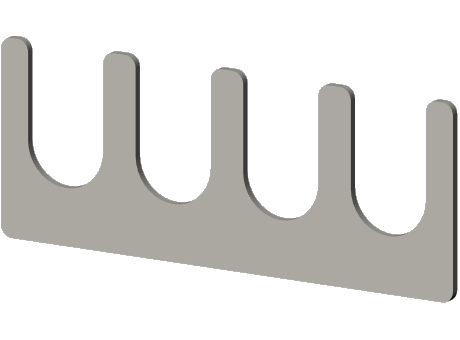

NAAMS ASH420N Fitting Shim

NAAMS ASH420N Fitting Shim


Brand: NAAMS

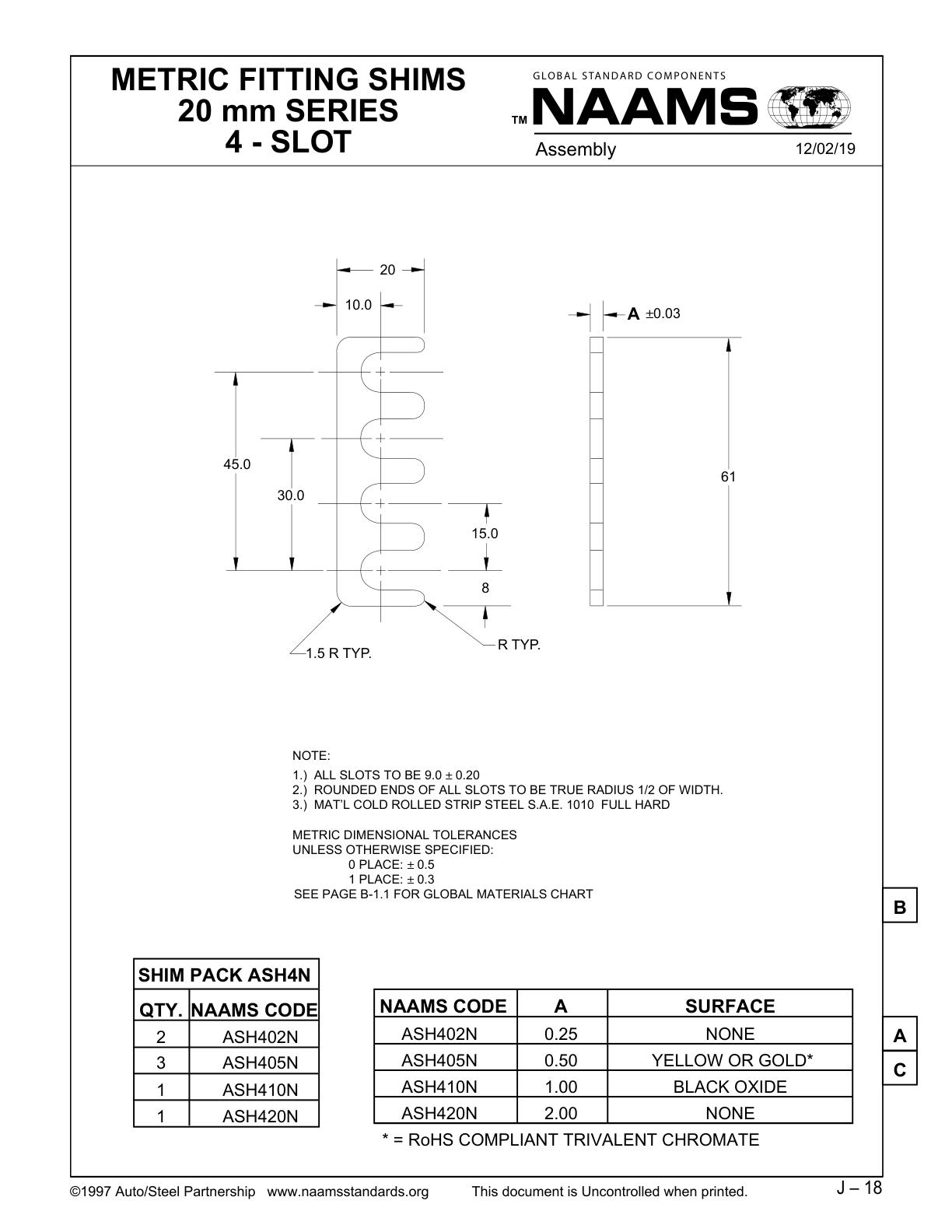

METRIC FITTING SHIMS 20 mm SERIES 4 – SLOT

SKU: ASH420N Category:

Additional information

Product Type

Fitting Shim

Series

ASH4N

Number of Slots

4

Slot End Type

Round

2 Slot Center to Center Length

15 mm

3 Slot Center to Center Length

30 mm

4 Slot Center to Center Length

45 mm

Slot Center to Edge Length

8 mm

Radius

1.5 mm

Material

Steel

Material Grade

S.A.E. 1010 FULL HARD

Thickness

2.00 mm

Center to End Width

10 mm

Overall Length

61 mm

Overall Width

20 mm

Package Quantity

1
