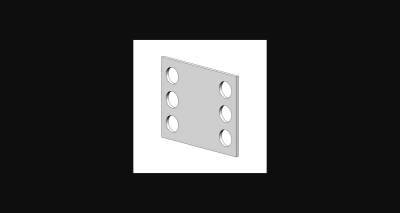

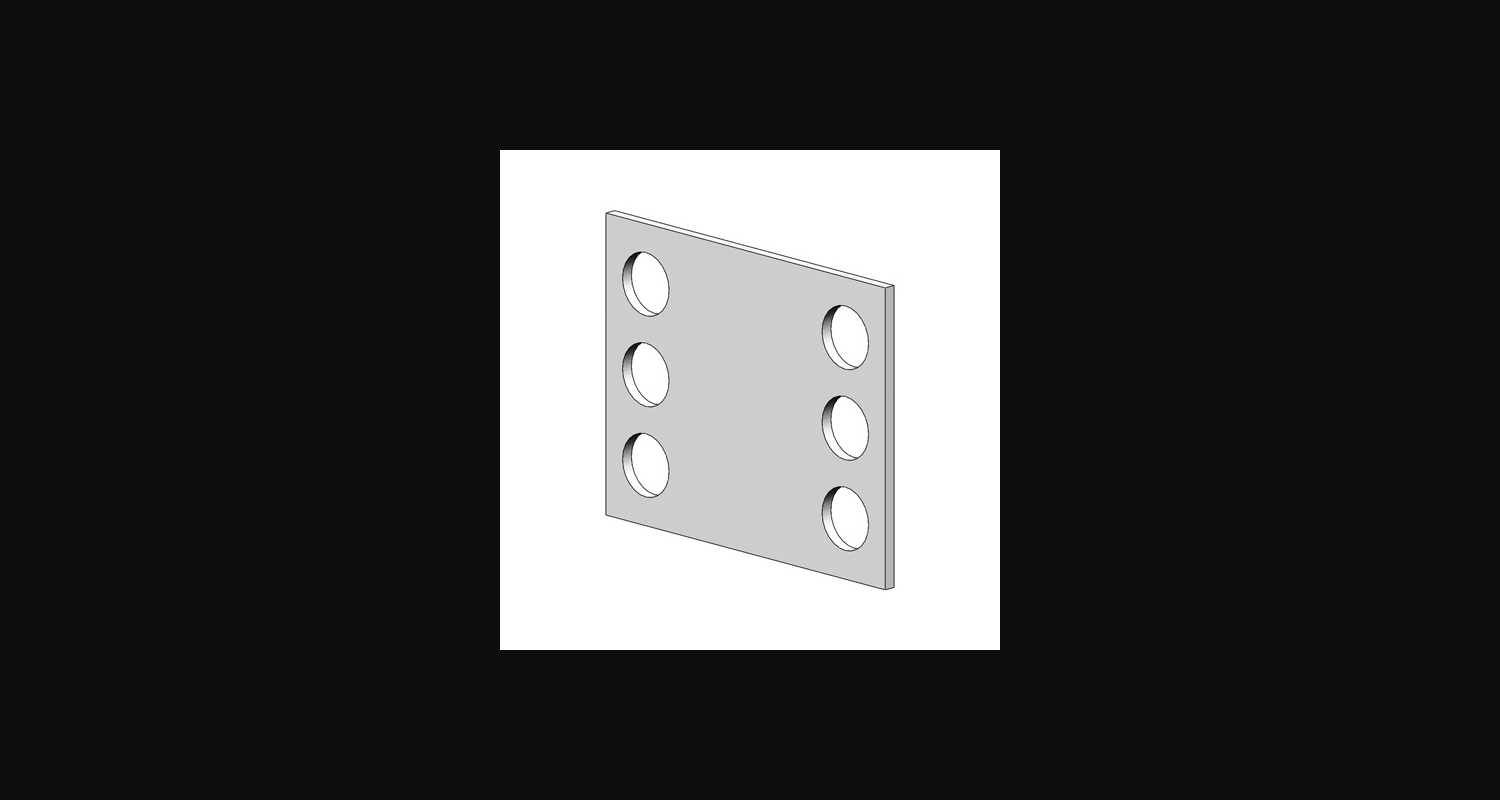

NAAMS ASP646 Fitting Spacer

NAAMS ASP646 Fitting Spacer


Brand: NAAMS

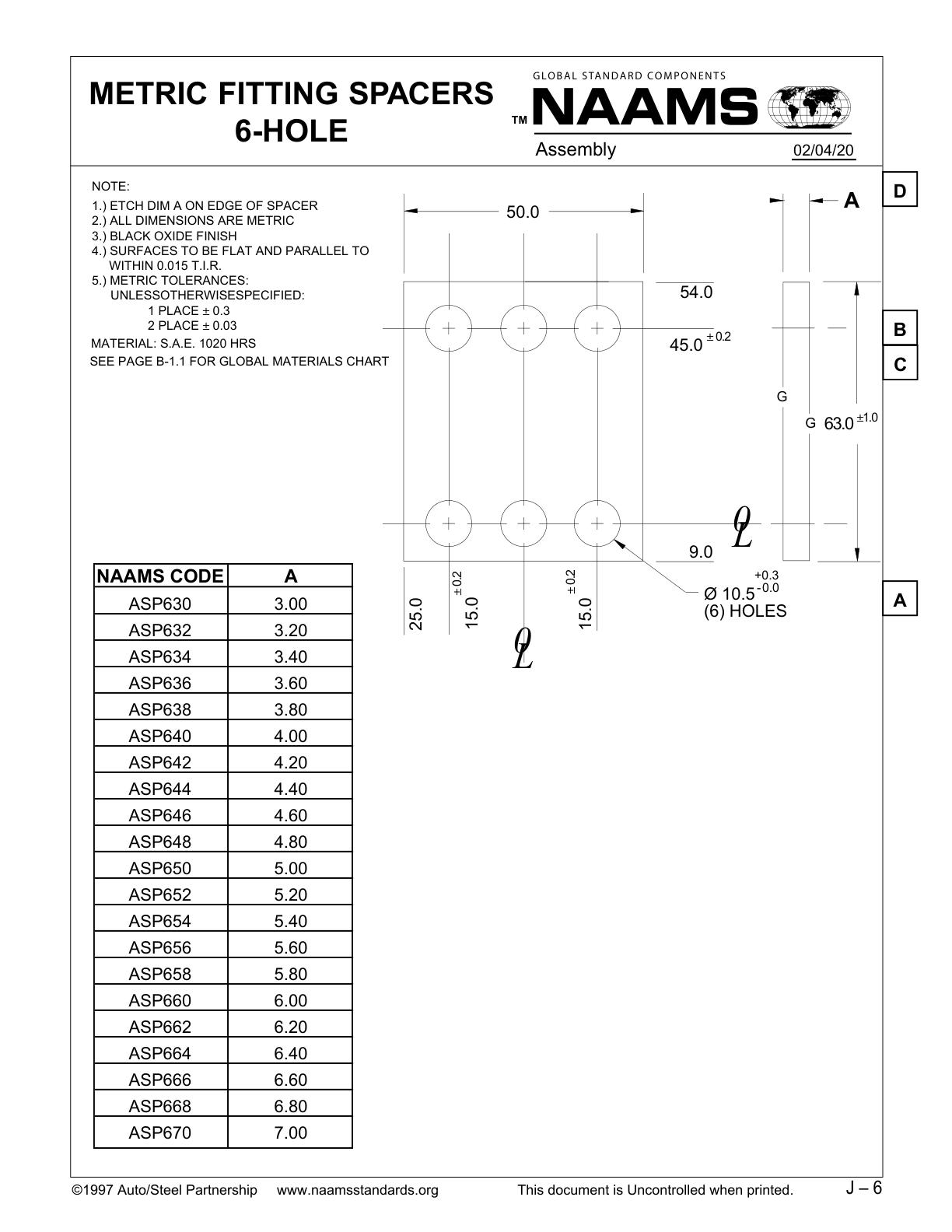

METRIC FITTING SPACERS 6-HOLE

SKU: ASP646 Category:

Additional information

Product Type

Fitting Spacer

Series

ASP6

Maximum Hole Diameter

10.5 mm

Number of Mounting Holes

6

Material

Steel

Finish

Black Oxide

Material Grade

S.A.E. 1020 HRS

Thickness

4.60 mm

Overall Length

63 mm

Overall Width

50 mm
