Additional information

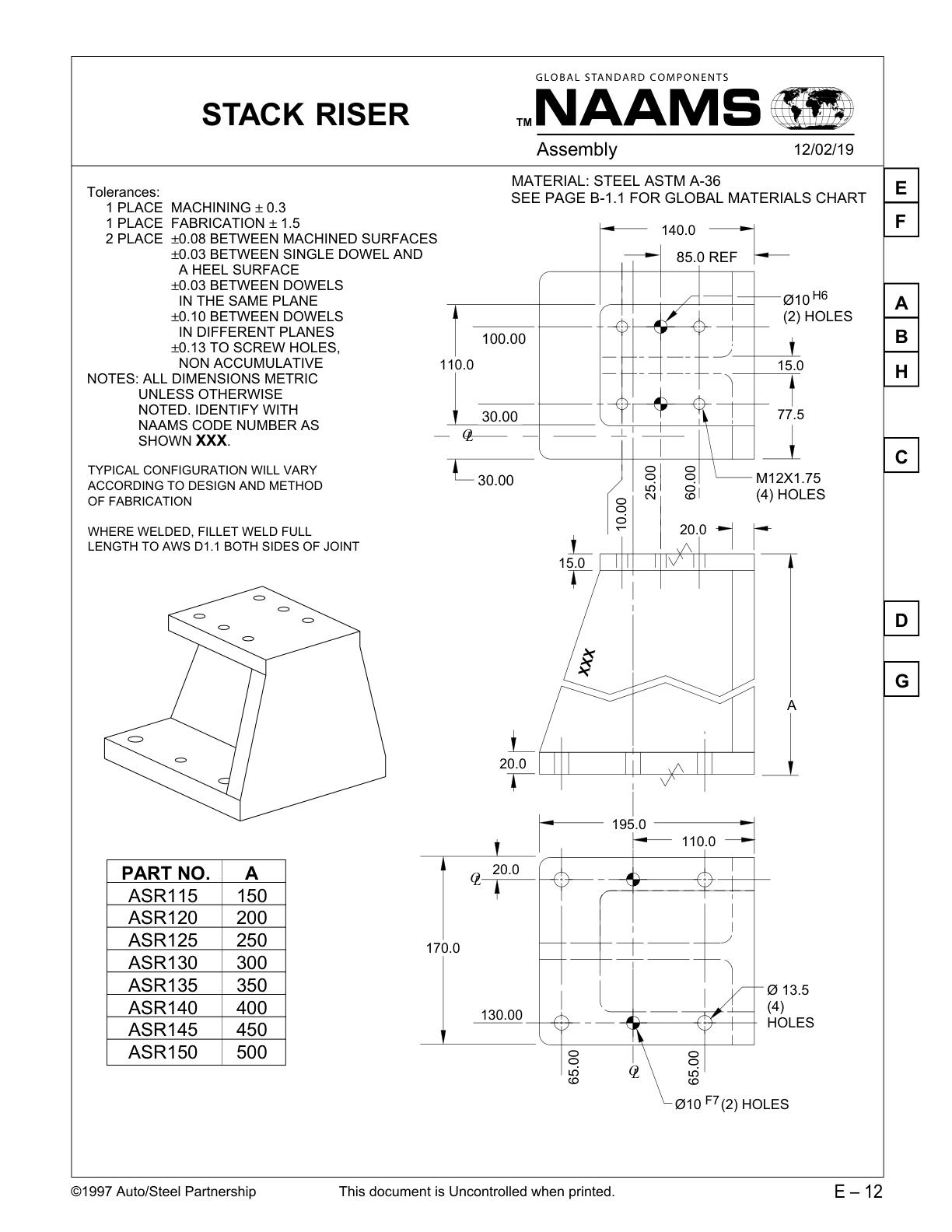

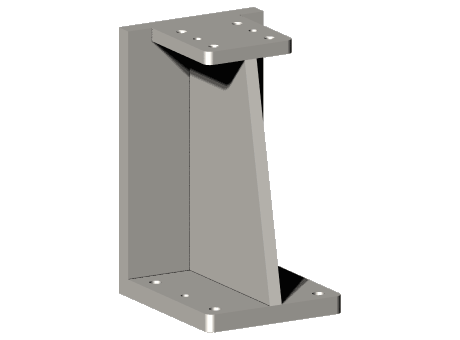

Product Type | Stack Riser |
---|---|
Series | ASR |
Number of Mounting Holes | 6 |
Mounting Hole Diameter | 13.5 mm |
Threaded Mounting Hole Size | M12X1.75 |
Center Hole Diameter | 10 H6 |
Center to End Length | 77.5 mm |
Material | Steel |
Material Grade | ASTM A-36 |
Fabrication Process | Welded |
Machining Tolerance | +/- 0.3 |
Fabrication Tolerance | +/- 1.5 |
Overall Length | 195 mm |
Overall Height | 150 mm |
Weight | |
Dimension (Thickness) | 20 mm |
