Additional information

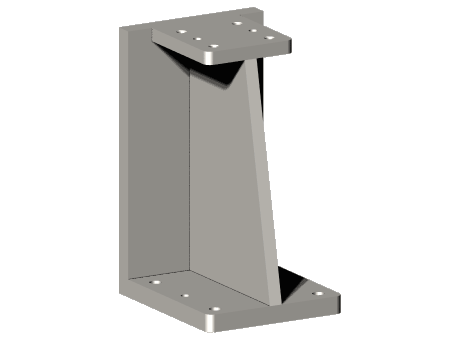

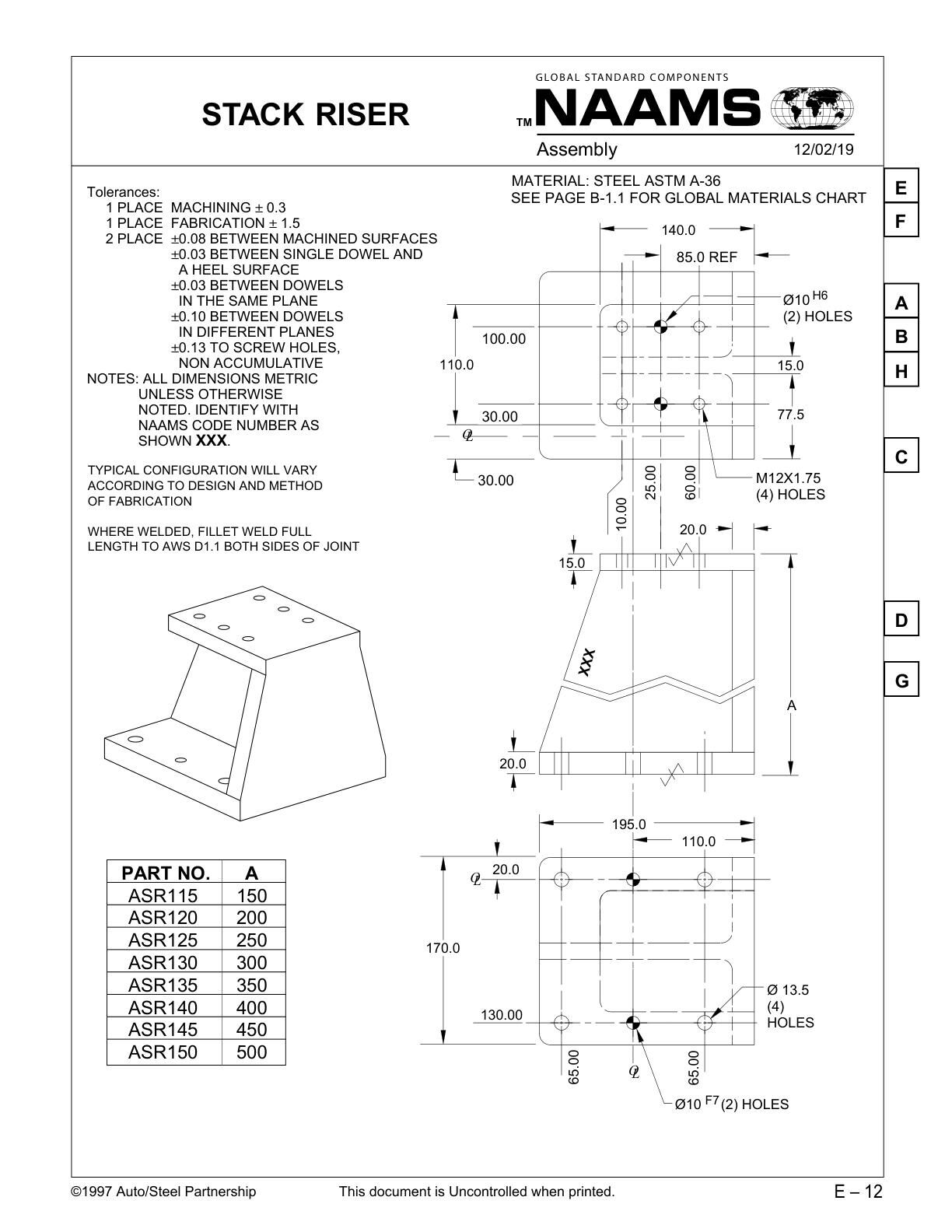

| Product Type | Stack Riser |
|---|---|
| Series | ASR |
| Number of Mounting Holes | 6 |
| Mounting Hole Diameter | 13.5 mm |
| Threaded Mounting Hole Size | M12X1.75 |
| Center Hole Diameter | 10 H6 |
| Center to End Length | 77.5 mm |
| Material | Steel |
| Material Grade | ASTM A-36 |
| Fabrication Process | Welded |
| Machining Tolerance | +/- 0.3 |
| Fabrication Tolerance | +/- 1.5 |
| Overall Length | 195 mm |
| Overall Height | 450 mm |
| Weight | |
| Dimension (Thickness) | 20 mm |
