$235.81
One-Touch Quick-Acting Swing Clamp (Horizontal Cam Lever)
1 in stock
One-Touch Swing Clamps are manually operated clamps that first rotate exactly 70° clockwise into position then clamp straight down in one continuous motion. The version shown here is operated by a radial cam lever that swings in a horizontal arc. Available in four clamp sizes, with the following maximum clamping forces that can be applied with the lever: 250 Lbs400 Lbs500 Lbs800 Lbs
| Product Type | One-Touch Quick-Acting Swing Clamp |
|---|---|
| Thread Size | #8-32 |
| Maximum Clamping Stroke | 0.04 in |
| Maximum Clamping Force | 250 lb |
| Maximum Allowable Torque | 4 ft-lb |
| Swing Stroke | 0.03 in |
| Unclamped Position | 1.21 in |
| Start of Clamping Range | 1.18 in |
| End of Clamping Range | 1.14 in |
| Material | 1045 Steel (Base, Spindle and Lever);Alloy Steel (Clamping-arm body and spiral-cam shaft);Black Phenolic Plastic (Knob Handle) |
| Finish | Black Oxide |
| Handle Diameter (P) | 0.59 in |
| Standards Met | DFARS;RoHS Compliant |

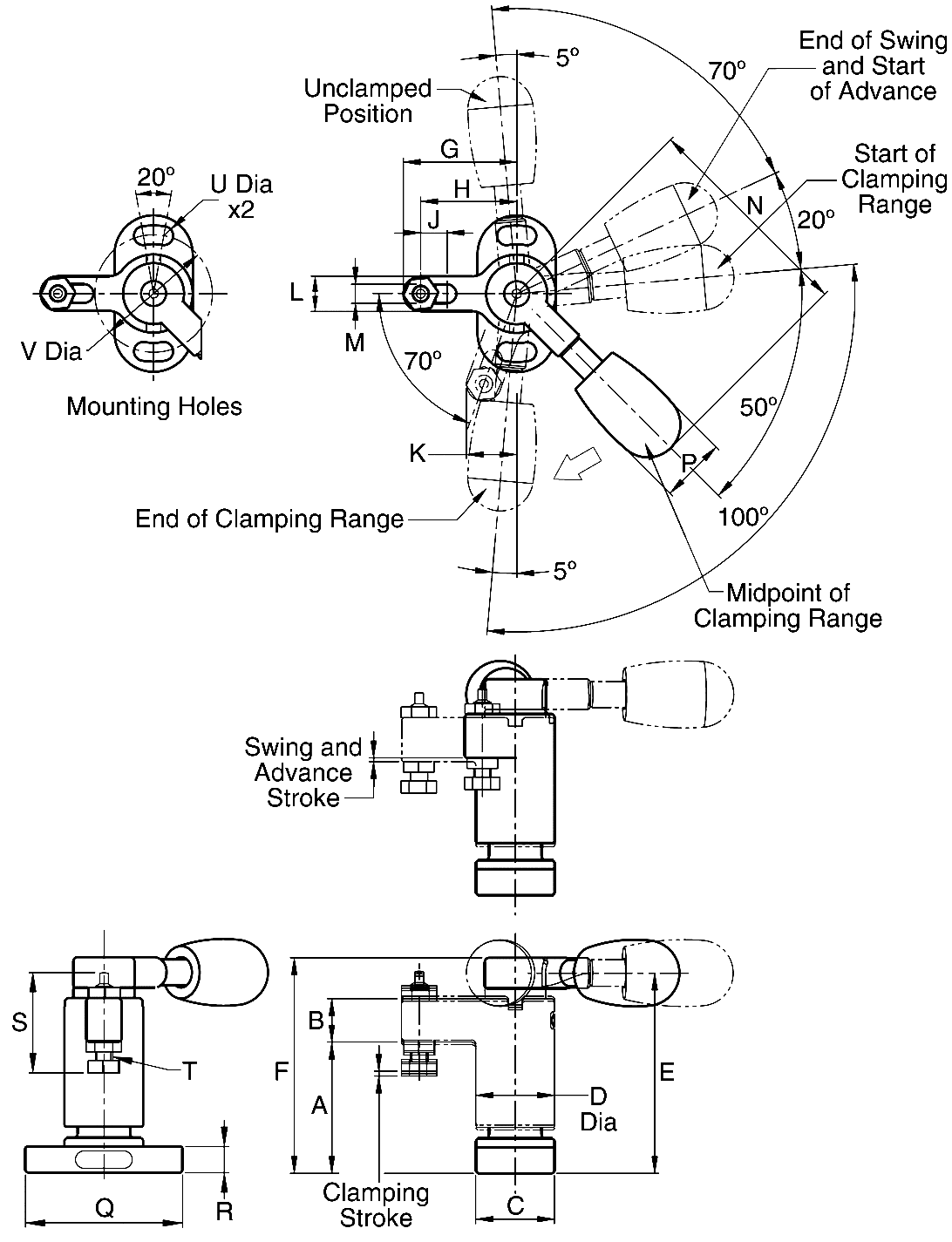

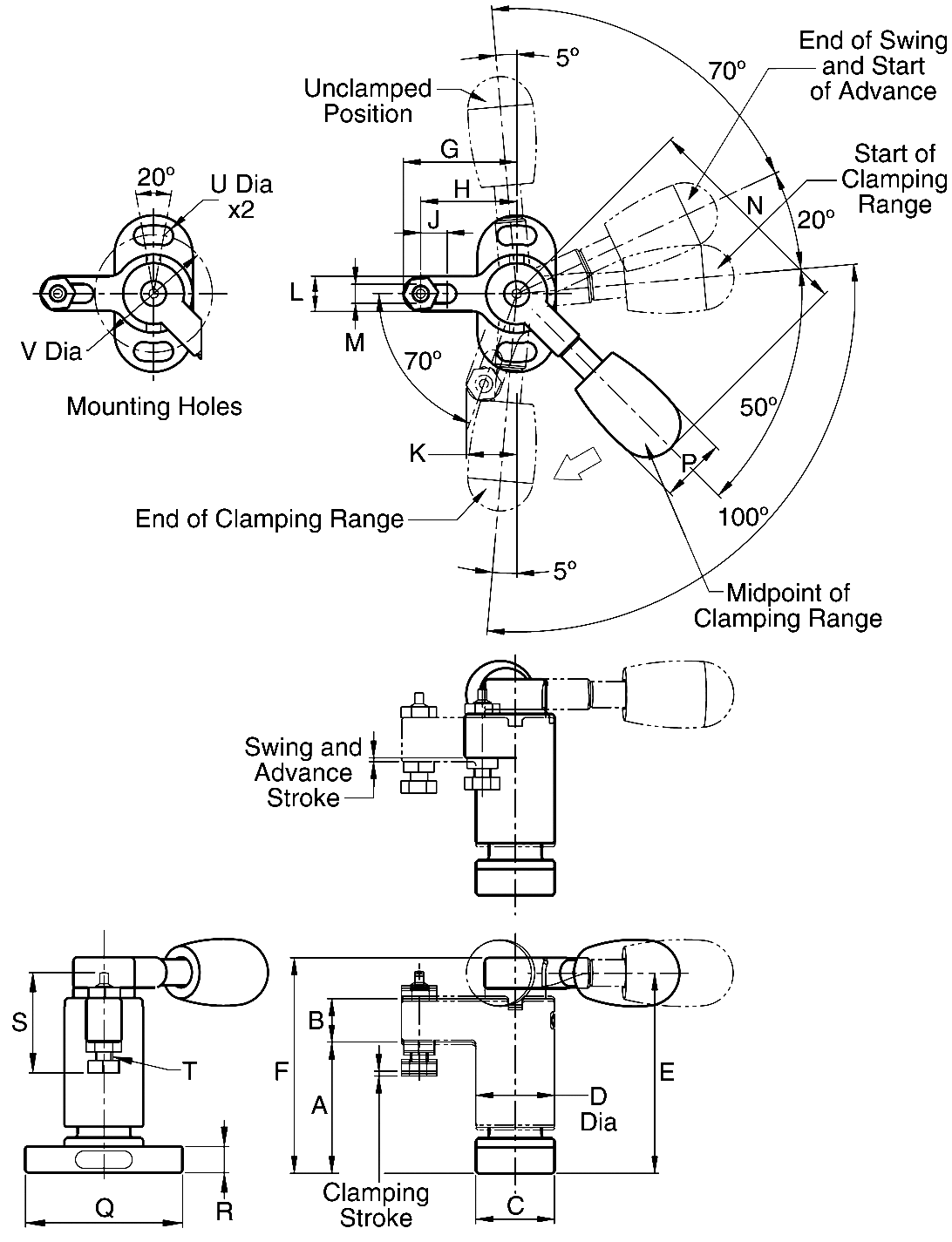

| Dimension (B) | 0.39 in |
| Dimension (C) | 0.71 in |
| Dimension (F) | 1.93 in |
| Dimension (G) | 1.02 in |
| Dimension (H) | 0.87 in |
| Dimension (J) | 0.24 in |
| Dimension (K) | 0.45 in |
| Dimension (L) | 0.31 in |
| Dimension (M) | 0.169 in |
| Dimension (N) | 1.97 in |
| Dimension (Q) | 1.42 in |
| Dimension (R) | 0.24 in |
| Dimension (S) | 0.88 in |
| Dimension (E) | 1.8 in |
