Description
- Swing motion available in 90 degrees
- Two styles of arms
- Double-locked arm design is bolted to piston shaft and around shaft diameter for extra rigidity
- Threaded body for mounting through fixture plates

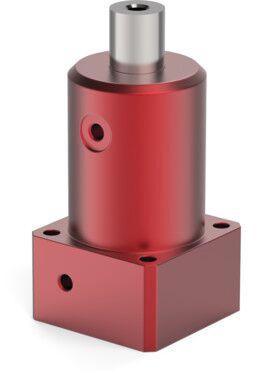

Pneumatic Swing/Pull Clamp
$584.05
Brand: Destaco
Pneumatic Swing/Pull Clamp
Additional information
| Product Type | Pneumatic Swing/Pull Clamp |
|---|---|
| Clamp Stroke | 0.52 in |
| Cylinder Bore Size | 1.57 in |
| Clamping Force | 60 lbf |
| Rotary Stroke | 1.09 in |
| Swing Direction | RH |
| Air Port Size | 1/8 in NPT |
| Air Consumption | 0.015 cu in double stroke at 7 psi |
| Stroke During Rotation | 0.57 in |
| Sensor (Yes/No) | No |
| Mounting Type | Flanged (Body) |
| Length | 2.29 in |
| Width | 2.29 in |
| Height | 3.89 in |
| Weight | 1.4 lb |
