Description
- Sensor ready for round style sensors
- Clamping Arm not included
- Left Hand Swing

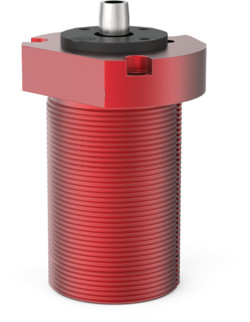

Threaded Body Style Pneumatic Swing Clamp
$659.86
Brand: Destaco
Threaded Body Style Pneumatic Swing Clamp
Additional information
| Product Type | Pneumatic Swing Clamp |
|---|---|
| Clamp Stroke | 0.5 in |
| Cylinder Bore Size | 1.5 in |
| Clamping Force | 67 lbf |
| Rotary Stroke | 1.25 in |
| Swing Direction | LH |
| Air Port Size | 3/8 in – 16 |
| Air Consumption | 0.015 cu in double stroke at 7 psi |
| Stroke During Rotation | 0.75 in |
| Sensor (Yes/No) | Yes |
| Mounting Type | Threaded (Body) |
| Length | 5.11 in |
| Width | 3 in |
| Height | 3 in |
| Weight | 2.2 lb |
