Description
- Lightweight and robust, designed for several million cycles
- Clamp arms and accessories sold separately
- Maximum operating pressure 8 bar (120 psi)

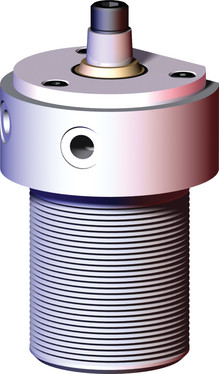

Threaded Body Style Pneumatic Swing Clamp
$1,171.29
Brand: Destaco
Threaded Body Style Pneumatic Swing Clamp
Additional information
| Product Type | Pneumatic Swing Clamp |
|---|---|
| Clamp Stroke | 0.32 in |
| Cylinder Bore Size | 2.48 in |
| Clamping Force | 321 lbf |
| Rotary Stroke | 1.02 in |
| Swing Direction | LH |
| Air Port Size | G-1/4 |
| Air Consumption | 0.04 cu in double stroke at 7 psi |
| Stroke During Rotation | 0.71 in |
| Sensor (Yes/No) | No |
| Mounting Type | Threaded (Body) |
| Length | 5.27 in |
| Width | 4.13 in |
| Height | 4.13 in |
| Weight | 3.68 lb |
