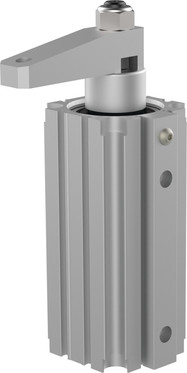

Pneumatic Swing Clamp

Name: Pneumatic Swing Clamp
SKU: 9530-2GR
Price: 723.88 CAD
Availability: InStock

$723.88

Brand: Destaco

1 in stock

SKU: 9530-2GR Category: Pneumatic Swing Clamps

Description

Unique design allows clamp arm to swing 90° on a horizontal plane before moving downward on its clamping stroke
Shielded piston rod for protection from weld spatter
Optional mounting accessories for side flange or tapped mounting
Available in four bore sizes, clamping arms sold separately

Product Type	Pneumatic Swing Clamp
Clamp Stroke	0.79 in
Cylinder Bore Size	1.26 in
Clamping Force	76 lbf
Rotary Stroke	0.79 in
Swing Direction	RH
Air Port Size	G-1/8
Air Consumption	0.01 cu in double stroke at 7 psi
Mounting Type	Block: Side Flange, Tapped Hole, Standard
Length	6.54 in
Width	1.81 in
Height	1.81 in
Weight	1.25 lb
