Press-Fit Ball Plunger – Stainless Steel with Delrin Ball

Press-Fit Ball Plunger – Stainless Steel with Delrin Ball

$8.23


Brand: Carr Lane

Press-Fit Ball Plunger – Stainless Steel with Delrin Ball

SKU: CL-2-PBPSN-1 Category:

Description

Simple, economical ball plunger ideal for installation in softer materials, such as aluminum, wood, or plastic. Use when a threaded hole would be impractical or when adjustment is not required. Sturdy shoulder provides a fixed seating position and positively resists detent force. Installation hole can be counterbored to recess the shoulder. The version shown here has a stainless steel body for extra corrosion resistance, and a Delrin® ball to prevent marring. Available in six body diameters from 1/8″ to 1/2″, each with a choice of light or heavy spring force. Made in USA.

Additional information

Product Type

Press-Fit Ball Plunger

Initial End Force

0.5 lb

Final End Force

1 lb

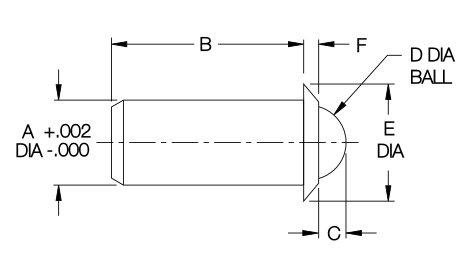

Exposed Length (C)

0.035 in

Outside Diameter (A)

0.125 in

Material

1215 steel;Stainless 1215 steel

Flange Diameter (E)

0.187 in

Flange Length (F)

0.032 in

Nose Diameter (D)

0.093 in

Length (B)

0.252 in

Standards Met

DFARS;RoHS Compliant
