Description

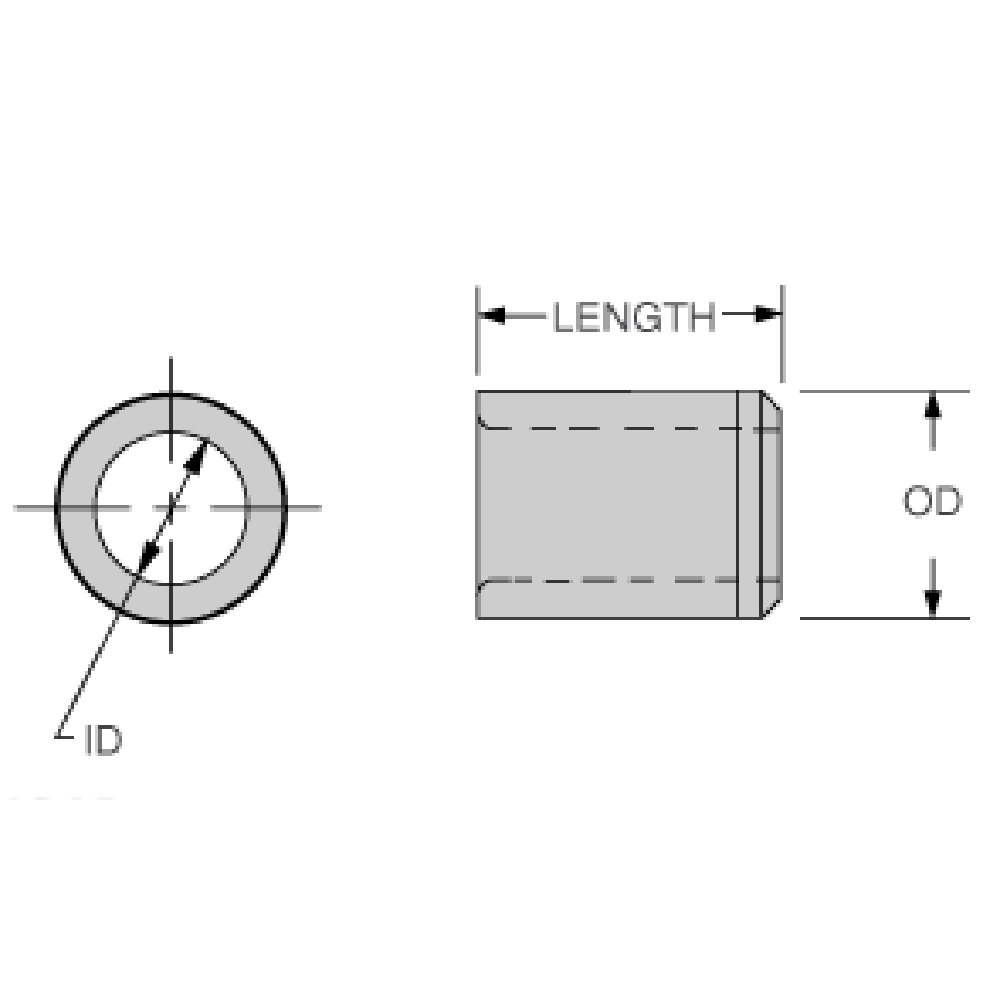

P style drill bushings are the most-popular and least-expensive type of drill bushing. Type P bushings are permanently pressed into the jig plate, usually flush with the top surface. P style drill bushings are generally used for single-operation drilling or reaming, when you do not expect to replace bushings during the tooling’s lifetime. Type P bushings can be mounted closer together than headed bushings, but offer less resistance to heavy axial loads. To order a specific standard Type P bushing, select the basic part number below and add the desired ID drill size (as a 4-place decimal inch) on the Price & Availability screen. See Technical Information tab for Standard Drill Sizes. Standard prices apply only to bushings with a standard inch, number, letter, or metric ID size within the stated range. The Part Configurator link at the top of this page can be used for any P bushing, either standard or special. Example standard bushings: P-20-16-.1250 1/8″ ID (.1250) P-20-16-.1772 4.50mm ID (.1772) P-20-16U-.1250 1/8″ ID (.1250) with unground OD (add “U” on Price & Availability screen)
