$14.03
Pull Handle – Square Design, Counterbored (Thermoplastic)
Attractive, modern-design handle that provides a comfortable grip with good ergonomic features. High-strength thermoplastic provides excellent durability. Textured non-slip, non-glare finish. Counterbored for mounting with two socket-head cap screws. Choice of four handle sizes.

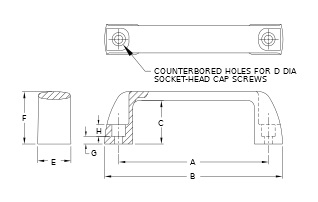

| Product Type | Pull Handle |
|---|---|
| Material | Fiber-Reinforced Nylon Thermoplastic |
| Finish | Molded-in Brass Insert |
| Center to Center Distance (A) | 7.05 in |
| Handle Style | Square Design |
| Mounting Type | Counterbored |
| Color | Black |
| Screw Size (D) | 5/16 in or M8 |
| Overall Length (B) | 8.03 in |
| Overall Height (F) | 1.97 in |
| Standards Met | DFARS;RoHS Compliant |
| Dimension (E) | 1.1 in |
| Inside Height (C) | 1.65 in |
| Dimension (G) | 0.31 in |
| Dimension (H) | 0.35 in |
