Push/Pull Toggle Clamp – CL-200-PC Series (850 lbs)

Push/Pull Toggle Clamp – CL-200-PC Series (850 lbs)

$86.06


Brand: Carr Lane

Push/Pull Toggle Clamp – CL-200-PC Series (850 lbs)

SKU: CLM-200-PC Category:

Description

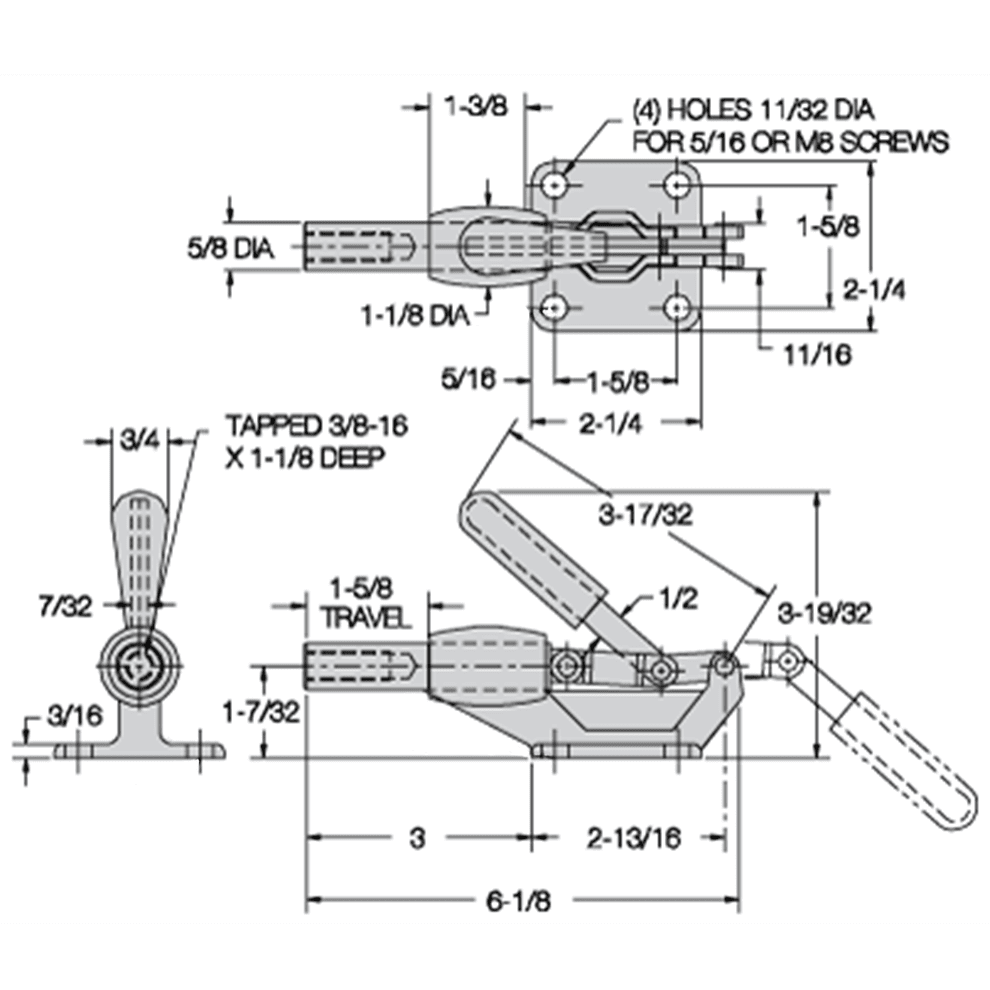

CL-200-PCTapped PlungerDurable plunger clamp with a nodular iron base. Locks in extended or retracted position. 1-5/8″ plunger travel. Plunger is tapped to accept any 3/8-16 spindle (M10 in metric). Optionally available with our safety-lock feature, and in an air-powered version (see Related Products below). 850 lbs holding capacity.

Additional information

Product Type

Push/Pull Toggle Clamp

Maximum Holding Capacity

850 lb

Plunger Travel

1-5/8 in

Plunger Thread

M10

Material

1215 Steel (Clamp Body);1008 Steel (Clamp Body);1010 Steel (Clamp Body);1018 Steel (Clamp Body);Nodular Iron (Base);400 Stainless (Rivets);Vinyl (Handle)

Handle Material

Vinyl

Finish

Zinc Plated Clear Chromate

Mounting Type

Flanged

Thread Size

3/8 in – 16

Standards Met

DFARS;RoHS Compliant
