Push/Pull Toggle Clamp – CL-250-TPC Series (300 lbs)

Push/Pull Toggle Clamp – CL-250-TPC Series (300 lbs)

$31.99


Brand: Carr Lane

Push/Pull Toggle Clamp – CL-250-TPC Series (300 lbs)

SKU: CL-250-TPC Category:

Description

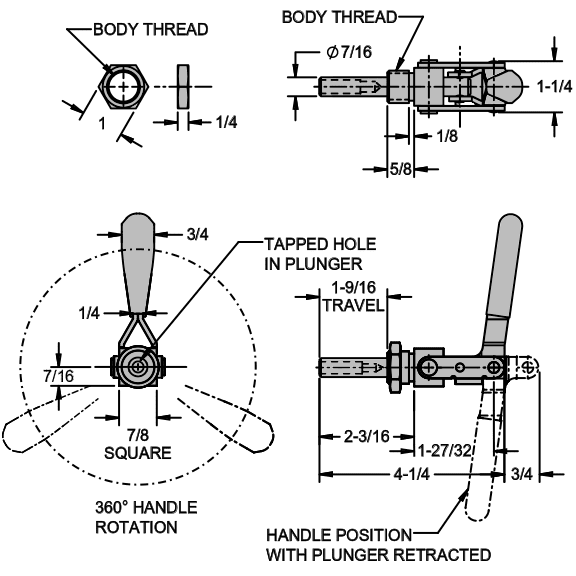

CL-250-TPCTapped PlungerCompact plunger clamp for mounting through panels, plates, or angle brackets. Install in a 3/4″-diameter drilled hole or a 3/4-16 tapped hole (M20x1.5 in metric), securing with the locknut provided. Rotate clamp to position handle anywhere within 360°. Locks in extended or retracted position. 1-1/2″ plunger travel. Plunger is tapped to accept any 5/16-18 spindle (M8 in metric). Optionally available with our patented self-adjusting plunger (see Related Products below). 300 lbs holding capacity.

Additional information

Product Type

Push/Pull Toggle Clamp
Maximum Holding Capacity

300 lb
Plunger Travel

1-1/2 in
Plunger Thread

5/16 in – 18
Material

1215 Steel (Clamp Body);1008 Steel (Clamp Body);1010 Steel (Clamp Body);1018 Steel (Clamp Body);400 Stainless (Rivets);Vinyl (Handle);300 Stainless (Clamp Body)
Handle Material

Vinyl
Finish

Zinc Plated Clear Chromate
Mounting Type

Threaded
Thread Size

5/16 in – 18
Standards Met

DFARS;RoHS Compliant
