$85.69

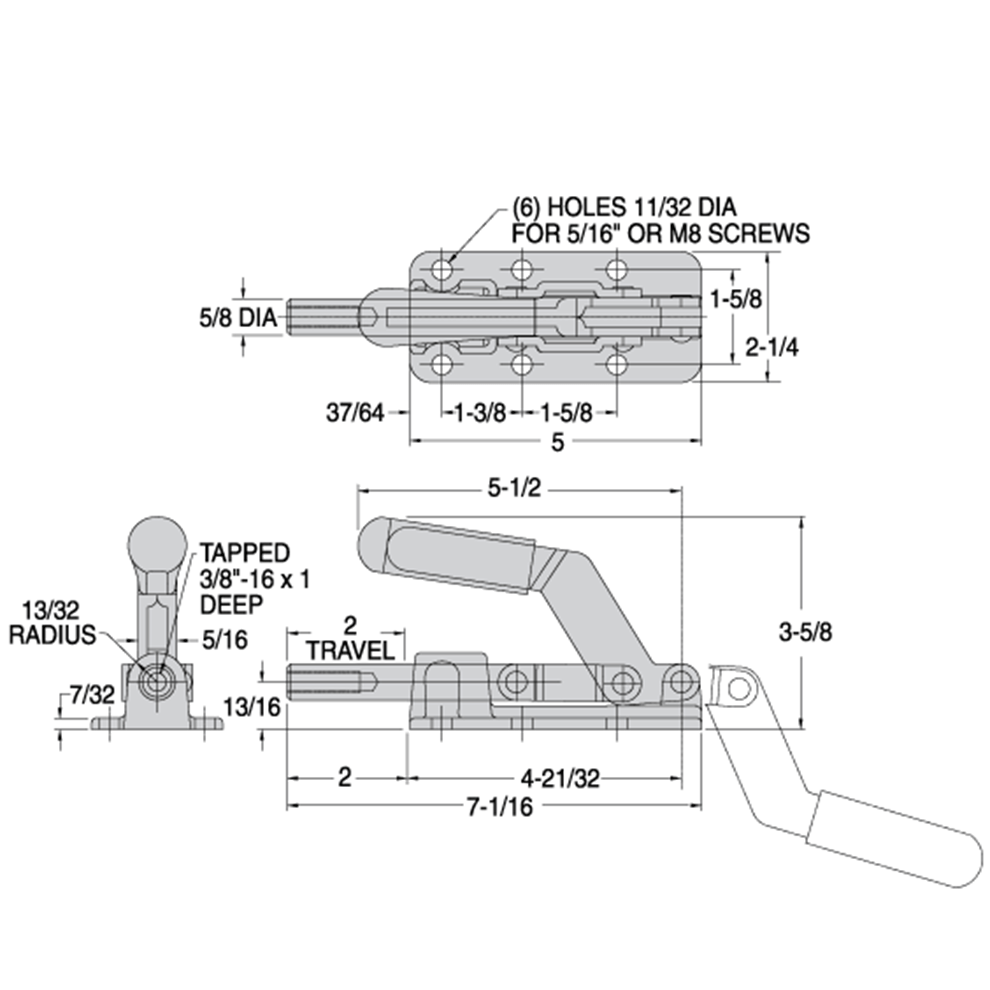

Push/Pull Toggle Clamp – CL-350-SPC Series (2500 lbs)
CL-350-SPC Tapped PlungerCompact heavy-duty plunger clamp with an extremely low profile. Rugged forged steel base. Locks in extended or retracted position. 2″ plunger travel. Plunger is tapped to accept any 3/8-16 spindle (M10 in metric). Optionally available with our safety-lock feature (see Related Products below). 2500 lbs holding capacity.
| Product Type | Push/Pull Toggle Clamp |
|---|---|
| Maximum Holding Capacity | 2500 lb |
| Plunger Travel | 2 in |
| Plunger Thread | M10 |
| Material | 1008 Steel;1010 Steel;1018 Steel (Clamp Body);Forged Stainless Steel (Base);400 Stainless (Rivets);Vinyl (Handle) |
| Handle Material | Vinyl |
| Finish | Zinc Plated Clear Chromate |
| Mounting Type | Flanged |
| Thread Size | 3/8 in – 16 |
| Standards Met | DFARS;RoHS Compliant |
