$59.58

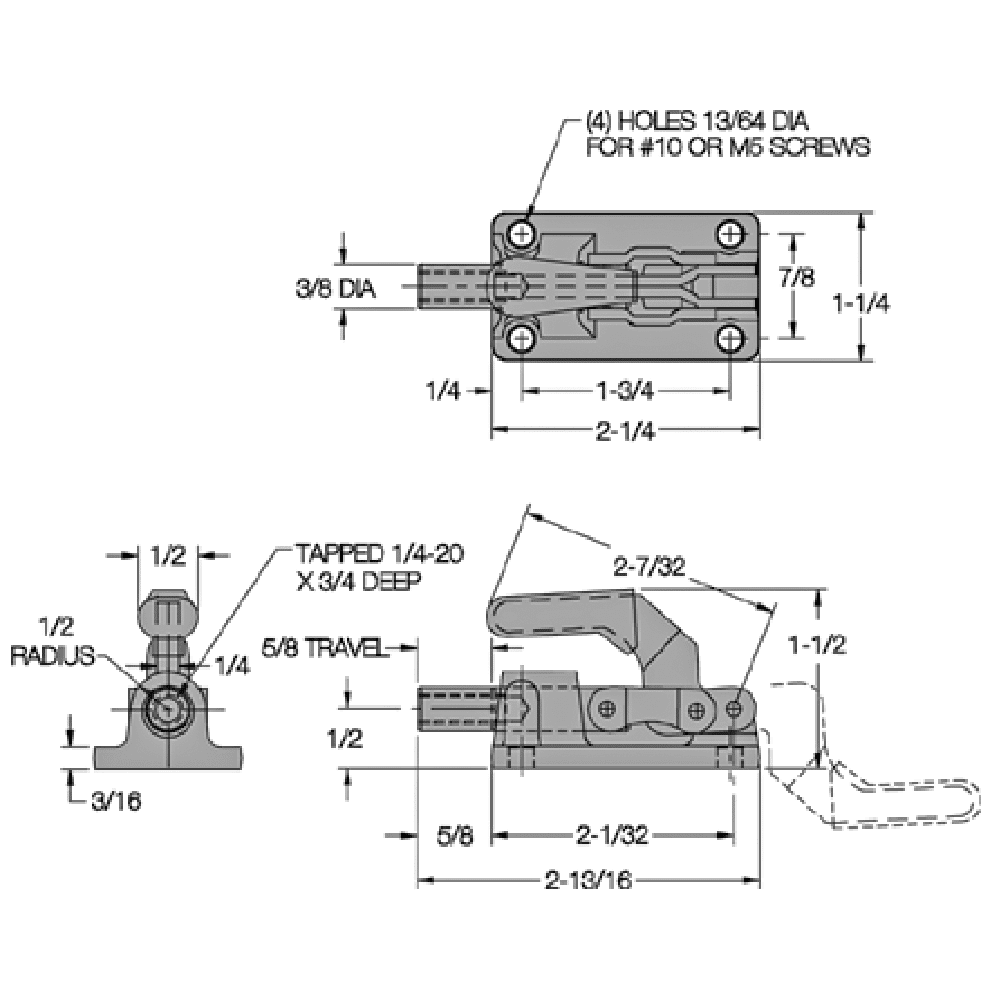

Push/Pull Toggle Clamp – CL-100-SPC Series (300 lbs)
CL-100-SPCTapped PlungerTiny yet extremely powerful plunger clamp with a forged steel base. Requires very little mounting space due to its narrow base and compact low profile. Locks in extended or retracted position. 5/8″ plunger travel. Plunger is tapped to accept any 1/4-20 spindle (M6 in metric). Available in in steel or stainless steel. Optionally available with our safety-lock feature (see Related Products below). 300 lbs holding capacity.
| Product Type | Push/Pull Toggle Clamp |
|---|---|
| Maximum Holding Capacity | 300 lb |
| Plunger Travel | 5/8 in |
| Plunger Thread | M6 |
| Material | 1215 Steel (Clamp Body);1008 Steel (Clamp Body);1010 Steel (Clamp Body);1018 Steel (Clamp Body);400 Stainless (Rivets);Vinyl (Handle);Forged Steel (Base);300 Stainless (Clamp Body) |
| Handle Material | Vinyl |
| Finish | Zinc Plated Clear Chromate (Clamp Body);Zinc Plated Chromate (Base) |
| Mounting Type | Flanged |
| Thread Size | 1/4 in – 20 |
| Standards Met | DFARS;RoHS Compliant |
