Rest Button

Rest Button

$9.95


Brand: Carr Lane

Rest Button

SKU: CL-26432 Category:

Description

Precision height locator with a close-tolerance shank for installation in a reamed hole. Rest Buttons are extremely useful as supports, side locator pads, and jig feet. Available in head diameters from 3/8 to 1-1/4″ (10 to 20mm in metric), each in a choice of heights. Available in steel or stainless steel. Made in USA.

Additional information

Product Type

Rest Button

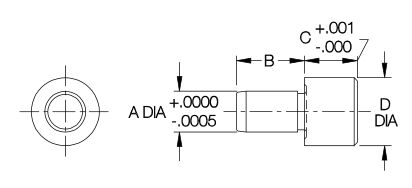

Stud Diameter

3/16 in

Stud Length

1/4 in

Head Length

1/4 in

Head Diameter

3/8 in

Material

1144 Steel;300 Stainless Steel

Finish

Black Oxide

Standards Met

DFARS;RoHS Compliant
