Rest Button

Rest Button

$13.99


Brand: Carr Lane

Rest Button

SKU: CLM-1010-RB Category:

Description

Precision height locator with a close-tolerance shank for installation in a reamed hole. Rest Buttons are extremely useful as supports, side locator pads, and jig feet. Available in head diameters from 3/8 to 1-1/4″ (10 to 20mm in metric), each in a choice of heights. Available in steel or stainless steel. Made in USA.

Additional information

Product Type

Rest Button

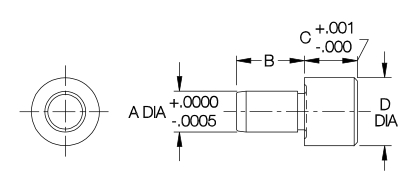

Stud Diameter (A)

10 mm

Stud Length (B)

12 mm

Head Length (C)

10 mm

Head Diameter (D)

20 mm

Material

1144 Steel;300-Series Stainless Steel

Finish

Black Oxide

Standards Met

DFARS;RoHS Compliant
