Round End Clamp (RK)

Round End Clamp (RK)

$7.60


Brand: Carr Lane

Round End Clamp (RK)

SKU: RK-10 Category:

Description

Heavy-duty alternative to Lockscrews that can be used on either the “slip” or “fixed” side of a slip/fixed bushing. Available in a wide range of sizes to fit renewable bushings from 5/16 to 5″ body diameter. See bushing pages to select proper clamp size. Round End Clamps are available in two heights, for standard mounting (fully recessed liner) or projected mounting (head liner with head not recessed).

Additional information

Product Type

Round End Clamp

Material

Mild Steel

Finish

Black Oxide

Standards Met

DFARS;RoHS Compliant

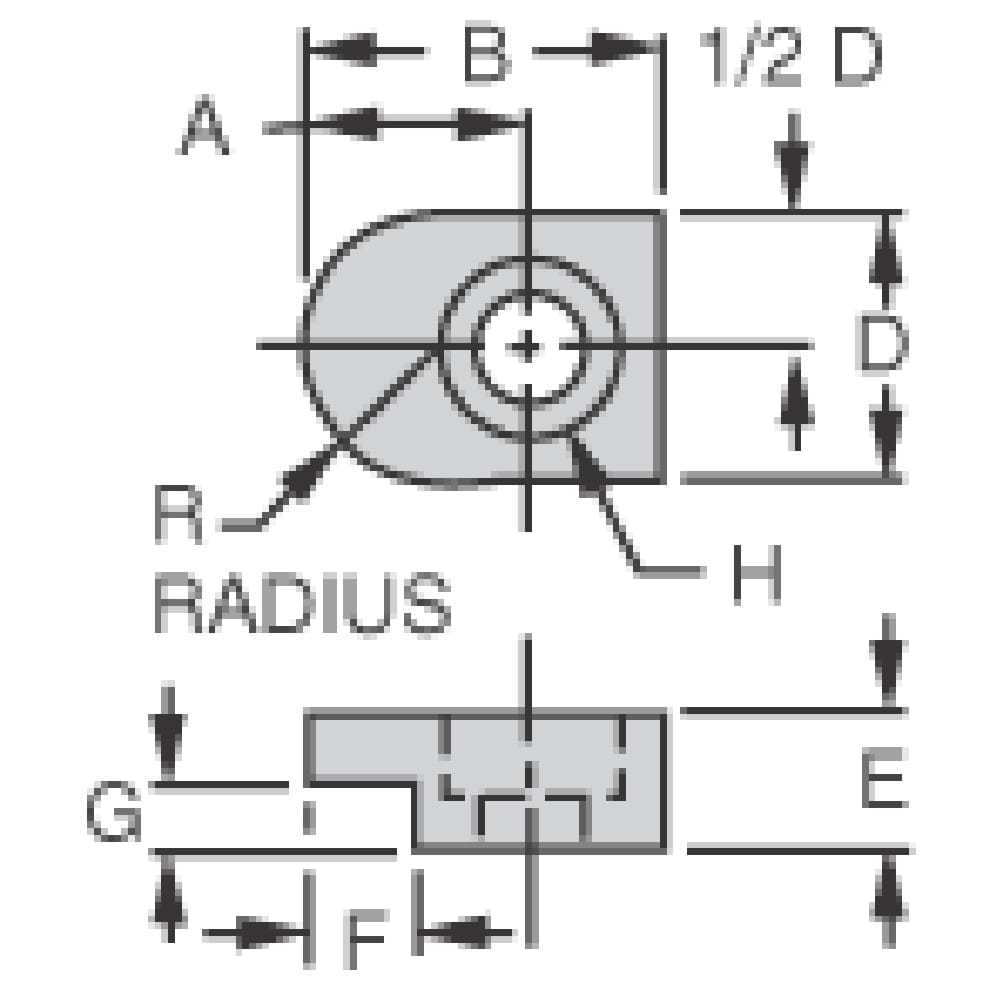

Dimension (A)

7/16 in

Dimension (B)

3/4 in

Dimension (D)

5/8 in

Dimension (E)

3/8 in

Dimension (F)

3/16 in

Dimension (G)

7/32 in

Dimension (Socket Head H)

1/4 in – 20

Dimension (R)

5/16 in
