Round Gripper

Round Gripper

$40.24


Brand: Carr Lane

Round Gripper

SKU: CL-8-RGC Category:

Description

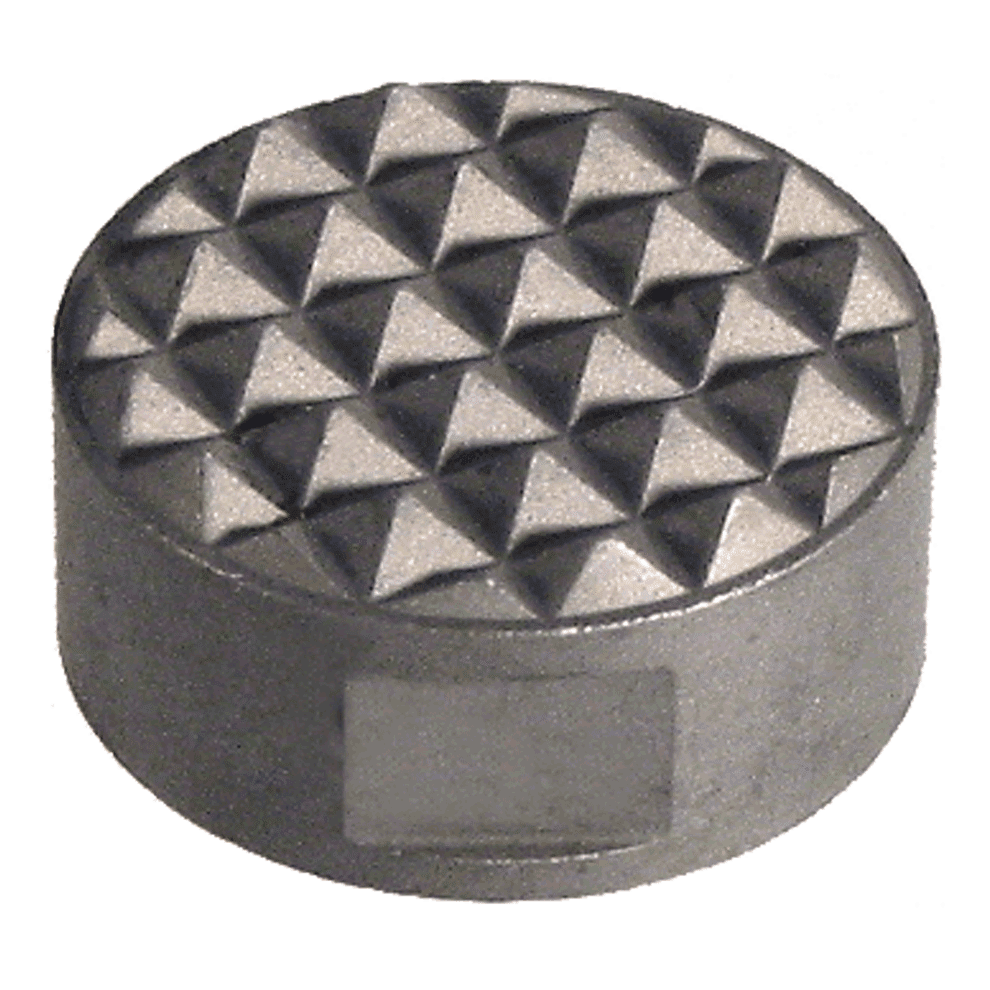

Serrated Round Grippers are hard, replaceable inserts that provide additional holding force and/or wear resistance when installed in a fixture. These grippers are designed to slightly penetrate the workpiece to significantly increase gripping force, rather than relying on static friction alone. The carbide grippers shown here are the most durable. Available in diameters from 1/2 to 3/4″. Made in USA.

Additional information

Product Type

Round Gripper

Thread Size (C)

#10-32

Diameter (A)

1/2 in

Hub Length (E)

3/16 in

Material

Solid Carbide With Steel Thread Insert

Thread Depth (D)

3/16 in

Serration Type

Fine

Serration Dimensions

0.125 in x 90°

Height (B)

3/8 in

Dimension (F)

11/64 in

Dimension (G)

3/8 in

Standards Met

DFARS;RoHS Compliant
