Round Gripper

Round Gripper

$19.16


Brand: Carr Lane

Round Gripper

SKU: CLM-12-RGT Category:

Description

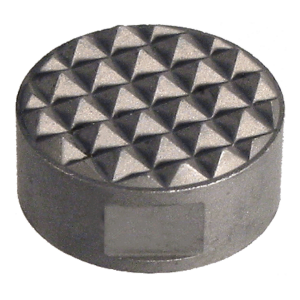

Serrated Round Grippers are hard, replaceable inserts that provide additional holding force and/or wear resistance when installed in a fixture. These grippers are designed to slightly penetrate the workpiece to significantly increase gripping force, rather than relying on static friction alone. The carbide-tipped grippers shown here are economical and impact resistant while providing extra durability. Available in diameters from 3/8 to 1″ (10 to 25mm in metric). Made in USA.

Additional information

Product Type

Round Gripper

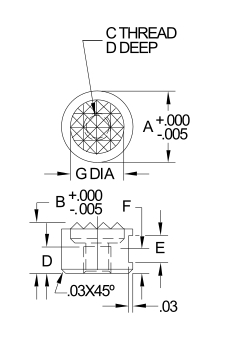

Thread Size (C)

M5

Diameter (A)

12 mm

Hub Length (E)

4.7 mm

Material

Alloy Steel

Finish

Black Oxide

Thread Depth (D)

5 mm

Serration Type

Fine

Serration Dimensions

3.2 in x 90°

Height (B)

10 mm

Dimension (F)

4.5 mm

Dimension (G)

9.5 mm

Thread Pitch

0.8 mm

Standards Met

DFARS;RoHS Compliant
