Description

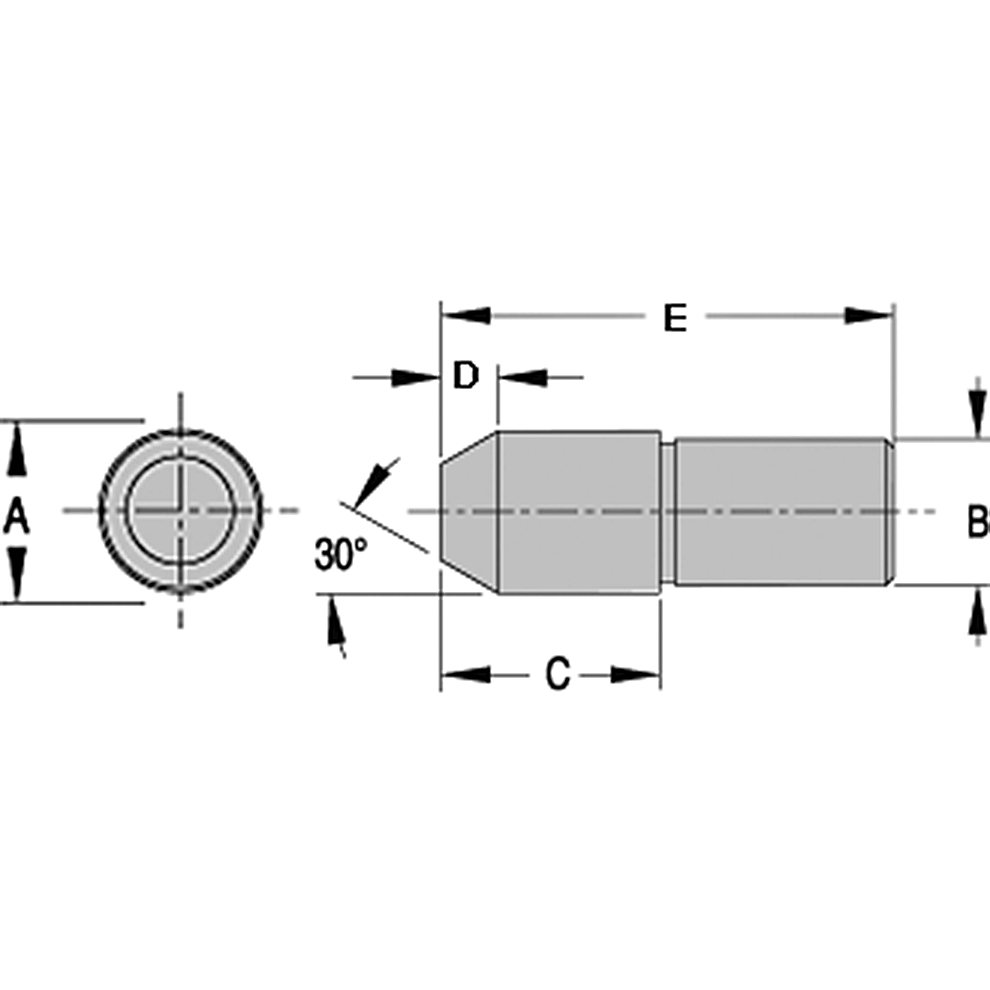

Round locating pins are precision engineered with a chamfered tip for easy part loading, and a shoulder to resist downward forces – important advantages over standard dowel pins. One Round locating Pin and one Diamond Pin are often used together to locate from two machined holes in a workpiece, or to align two pieces of a fixture, without binding. Round Locating Pins are also extremely useful as side locators. Head and shank diameters on round locating pins are concentric to within .0005″ TIR. Available with head diameters from 1/4 to 1″ (6 to 20mm in metric). Carr Lane round locating pins are proudly made in USA.
